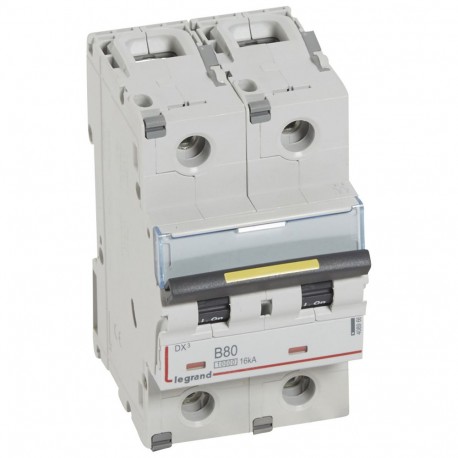

408966 LEGRAND MAGNET DX3 10/16kA B 2P 80A
408966
408966
LEGRAND
1 Pcs.
MAGNET DX3 10/16kA B 2P 80A
MCB - DX³ 10000 - 16 kA - 2P - 230/400 V~ - 80 A - B curve
DX³ Circuit Breaker 10000/16kA - 2P - 230/400V~ - 80A - B curve
Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 408966 is a two-pole magnetic circuit breaker designed to protect electrical circuits against high-magnitude fault currents and short circuits in commercial and industrial infrastructures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof (EF004663): No
- Connectable conductor cross section solid-core (EF007337): 6 mm²
- Ambient temperature during operating (EF007515): -25 °C
- Degree of protection (IP) (EF005474): IP20
- Concurrently switching neutral conductor (EF005997): No
- Voltage type (EF000187): AC
- Additional equipment possible (EF008148): Yes
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Number of protected poles (EF005548): 2
- Frequency (EF000416): 50 Hz
- Built-in depth (EF000218): 47 mm
- Number of poles (total) (EF008618): 2
- Pollution degree (EF002570): 2
- Width in number of modular spacings (EF002950): 3
- Rated insulation voltage Ui (EF001366): 500 V
- Connectable conductor cross section multi-wired (EF007343): 6 mm²
More info
▲- Pack (number of units)1
- Volume (dm3)0.605
- Weight (g)400.00
Product characteristics
2-pole 230/400 V~- B curve
- Nominal rating In : 80 A
- Number of modules : 3
General characteristics
MCBs DX³ 10000 - 16 kA - thermal magnetic circuit breakers from 1 A to 125 A - B and C curves- Conform to IEC 60898-1
- Compatible with prong-type and fork type supply busbars (except 80 A, 100 A and 125 A MCBs)
- Breaking capacity
- 10000 - IEC 60898-1 - 400 V~
- 16 kA - IEC 60947-2 - 400 V~
- Can be equipped with DX³ signalling and remote tripping auxiliaries, motorised controls and add-on modules
