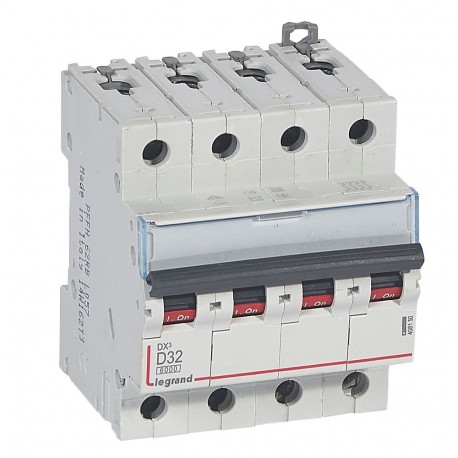

408150 LEGRAND MAGNET DX3 6/10 KA D 4P 32A
408150
408150
LEGRAND
1 Pcs.
MAGNET DX3 6/10 KA D 4P 32A
CP Electronics 4 Pole 4 Core 8m 1.5mm² LSF Luminaire Lead Red Plug
DX³ 6000/10kA Circuit Breaker - 4P - 400V~ - 32A - D curve
Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
The free end has a 70mm strip for the inner cores with a 10mm ferrule
| Feature Name | Feature Value |
|---|---|
| Explosion-proof (EF004663) | No |
| Connectable conductor cross section solid-core (EF007337) | 1.5 mm² |
| Ambient temperature during operating (EF007515) | -25 °C |
| Degree of protection (IP) (EF005474) | IP20 |
| Concurrently switching neutral conductor (EF005997) | Yes |
| Voltage type (EF000187) | AC |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (EF009555) | 6 kA |
| Additional equipment possible (EF008148) | Yes |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (EF009558) | 10 kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (EF009557) | 25 kA |
| Rated impulse withstand voltage Uimp (EF011980) | 4 kV |
| Number of protected poles (EF005548) | 4 |
| Frequency (EF000416) | 50 Hz |
| Built-in depth (EF000218) | 44 mm |
| Number of poles (total) (EF008618) | 4 |
| Pollution degree (EF002570) | 2 |
| Width in number of modular spacings (EF002950) | 4 |
| Rated insulation voltage Ui (EF001366) | 500 V |
| Connectable conductor cross section multi-wired (EF007343) | 1.5 mm² |
| Rated current (EF000227) | 32 A |
| Flush-mounted installation (EF007517) | Yes |
| Release characteristic (EF000889) | D |
| Rated voltage (EF000228) | 400 V |
