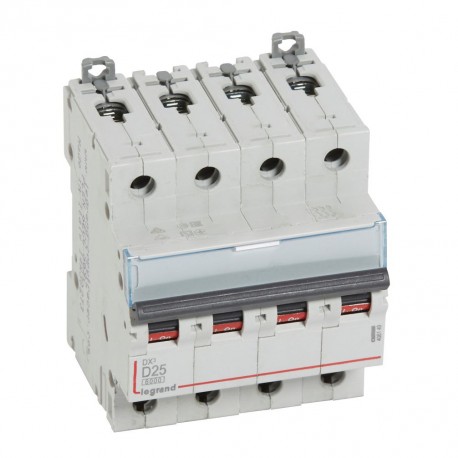

LEGRAND 408149 408149 LEGRAND MAGNET DX3 6/10 KA D 4P 25A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

408149 LEGRAND MAGNET DX3 6/10 KA D 4P 25A

408149

408149

LEGRAND

1 Pcs.

MAGNET DX3 6/10 KA D 4P 25A MCB - DX³ 6000 - 10 kA - 4P 400 V~ - 25 A - D curve DX³ 6000/10kA Circuit Breaker - 4P - 400V~ - 25A - D curve

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing dependable multi-phase protection, the Legrand 408149 LEGRAND MAGNET DX3 6/10 KA D 4P 25A acts as a primary circuit breaker within industrial and commercial switchboards. Circuit breakers automatically interrupt fault currents to prevent wiring damage and mitigate electrical hazards during overload conditions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 1.5 mm²
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): Yes
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 4
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 4
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 4
  • Rated insulation voltage Ui (EF001366): 500 V
  • Connectable conductor cross section multi-wired (EF007343): 1.5 mm²

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.69
  • Weight (g)610.00
Product characteristics
4-pole 400 V~
  • D curve
  • Nominal rating In : 25 A
  • Number of modules : 4
General characteristics
MCBs DX³ 6000 - 10 kA - thermal magnetic MCBs from 0.5 A to 63 A - D curve
  • Conform to IEC 60898-1
  • Compatible with both prong-type and fork type supply busbars
  • Breaking capacity:
  • 6000 - IEC 60898-1 - 400 V~
  • 10 kA - IEC 60947-2 - 400 V~
  • Can be equipped with DX³ signalling and remote tripping auxiliaries, motorised controls and add-on modules
