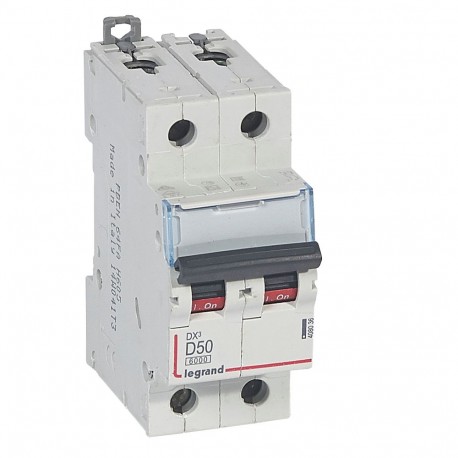

LEGRAND 408036 408036 LEGRAND MAGNET DX3 6/10 KA D 2P 50A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

408036 LEGRAND MAGNET DX3 6/10 KA D 2P 50A

408036

408036

LEGRAND

1 Pcs.

MAGNET DX3 6/10 KA D 2P 50A MCB - DX³ 6000 - 10 kA - 2P - 230/400 V~ - 50 A - D curve DX³ 6000/10kA Circuit Breaker - 2P - 230/400V~ - 50A - D curve

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand part number 408036 is a 50A magnet DX3 miniature circuit breaker engineered to protect electrical circuits from overloads and short circuits in commercial and industrial installations. Circuit breakers of this type are routinely integrated into distribution boards to provide reliable branch circuit protection and manual switching capabilities. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 1.5 mm²
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): No
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 2
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 2
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 2
  • Rated insulation voltage Ui (EF001366): 500 V
  • Connectable conductor cross section multi-wired (EF007343): 1.5 mm²

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.369
  • Weight (g)310.00
Product characteristics
2-pole 230/400 V~
  • D curve
  • Nominal rating In : 50 A
  • Number of modules : 2
General characteristics
MCBs DX³ 6000 - 10 kA - thermal magnetic MCBs from 0.5 A to 63 A - D curve
  • Conform to IEC 60898-1
  • Compatible with both prong-type and fork type supply busbars
  • Breaking capacity:
  • 6000 - IEC 60898-1 - 400 V~
  • 10 kA - IEC 60947-2 - 400 V~
  • Can be equipped with DX³ signalling and remote tripping auxiliaries, motorised controls and add-on modules

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
