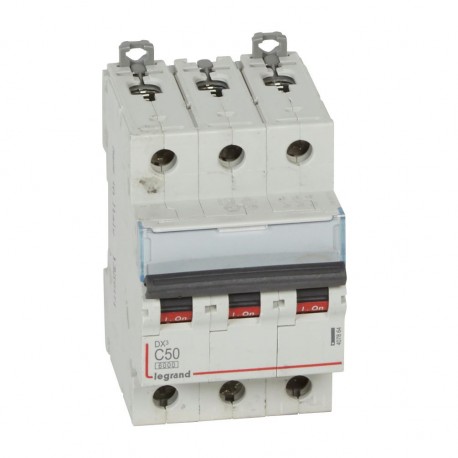

LEGRAND 407864 407864 LEGRAND MAGNET DX3 6/10 KA C 3P 50A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

407864 LEGRAND MAGNET DX3 6/10 KA C 3P 50A

407864

407864

LEGRAND

1 Pcs.

MAGNET DX3 6/10 KA C 3P 50A MCB - DX³ 6000 - 10 kA - 3P 400 V~ - 50 A - C curve DX³ 6000/10kA Circuit Breaker - 3P - 400V~ - 50A - C curve

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 407864 is a miniature circuit breaker built to protect industrial and commercial electrical circuits from overloads and short-circuit currents.

Circuit breakers serve a critical role in safeguarding wiring infrastructure by cutting off power when fault currents exceed safe operational thresholds. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 1.5 mm²
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): No
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 3
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 3
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 3
  • Rated insulation voltage Ui (EF001366): 500 V
  • Connectable conductor cross section multi-wired (EF007343): 1.5 mm²

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.69
  • Weight (g)475.00
Product characteristics
3-pole 400 V~
  • C curve
  • NominaI rating In : 50 A
  • Number of modules : 3
General characteristics
MCBs DX³ 6000 - 10 kA - thermal magnetic circuit breakers from 1 A to 63 A - B and C curves
  • Conform to IEC 60898-1
  • Compatible with both, prong-type and fork type supply busbars
  • Breaking capacity
  • 6000 - IEC 60898-1 - 400 V~
  • 10 kA - IEC 60947-2 - 400 V~
  • Can be equipped with DX³ signalling and remote tripping auxiliaries, motorised controls and add-on modules
