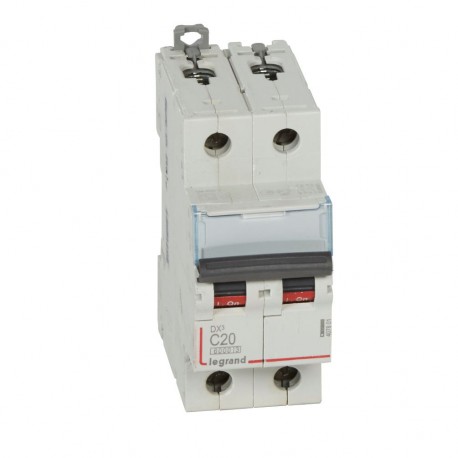

LEGRAND 407801 407801 LEGRAND MAGNET DX3 6/10 KA C 2P 20A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

407801 LEGRAND MAGNET DX3 6/10 KA C 2P 20A

407801

407801

LEGRAND

1 Pcs.

MAGNET DX3 6/10 KA C 2P 20A MCB - DX³ 6000 - 10 kA - 2P - 230/400 V~ - 20 A - C curve DX³ 6000/10kA Circuit Breaker - 2P - 230/400V~ - 20A - C curve

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

407801 LEGRAND MAGNET DX3 6/10 KA C 2P 20A supplied by Legrand is a thermal-magnetic circuit breaker designed to protect electrical installations against overloads and short circuits. Circuit breakers are vital for safeguarding electrical distribution networks and ensuring safe operation in commercial and industrial buildings.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 1.5 mm²
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): No
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 2
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 2
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 2
  • Rated insulation voltage Ui (EF001366): 500 V
  • Connectable conductor cross section multi-wired (EF007343): 1.5 mm²

More info

▲
  • Pack (number of units)5
  • Volume (dm3)1.681
  • Weight (g)1 342.00
Product characteristics
2-pole 230/400 V~
  • C curve
  • NominaI rating In : 20 A
  • Number of modules : 2
General characteristics
MCBs DX³ 6000 - 10 kA - thermal magnetic circuit breakers from 1 A to 63 A - B and C curves
  • Conform to IEC 60898-1
  • Compatible with both, prong-type and fork type supply busbars
  • Breaking capacity
  • 6000 - IEC 60898-1 - 400 V~
  • 10 kA - IEC 60947-2 - 400 V~
  • Can be equipped with DX³ signalling and remote tripping auxiliaries, motorised controls and add-on modules
