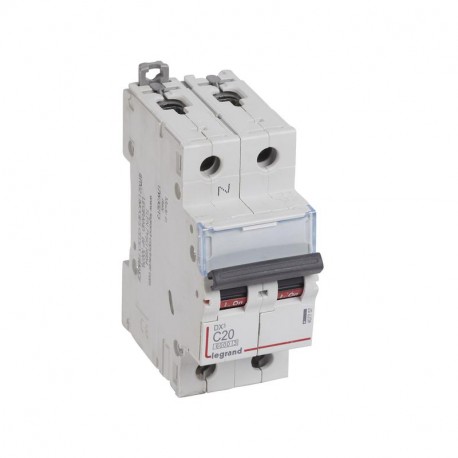

LEGRAND 407757 407757 LEGRAND MAGNET DX3 6/10 KA C P+N 20A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

407757 LEGRAND MAGNET DX3 6/10 KA C P+N 20A

407757

407757

LEGRAND

1 Pcs.

MAGNET DX3 6/10 KA C P+N 20A Circuit breaker DX3 6000/10 kA - 1P+N - 230 V~ - 20 A - curve C DX³ 6000/10kA Circuit Breaker - 1P+N - 230V~ - 20A - C curve

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A MAGNET DX3 6/10 KA C P+N 20A produced by Legrand (407757) functions as a protective circuit breaker designed to interrupt power during overloads and short circuits while switching the neutral conductor. This device is commonly installed in residential and commercial electrical panels to safeguard wiring and connected loads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 1.5 mm²
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): Yes
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 1
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 2
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 2
  • Rated insulation voltage Ui (EF001366): 500 V
  • Connectable conductor cross section multi-wired (EF007343): 1.5 mm²

More info

▲

Product features

Single-pole + neutral 230 V~ - Curve C - rated current: 20 - Number of modules: 2

General characteristics

MCB DX3 6000 - 10 kA - breakers residual current protection of 1 a To 63 A - curves C, B and D - Support connection with combs unipolar and combs multipolar Power of court: - 6000 - IEC 60898-1 - 400 V~ - 10 kA - IEC 60947-2 - 400 V~ - branded Products, N (except 1P+N 2 modules, and curve (B) - can Be equipped with blocks, breakers, controls, motor, and auxiliary control and signalling DX3 - Portaetiquetas incorporated
