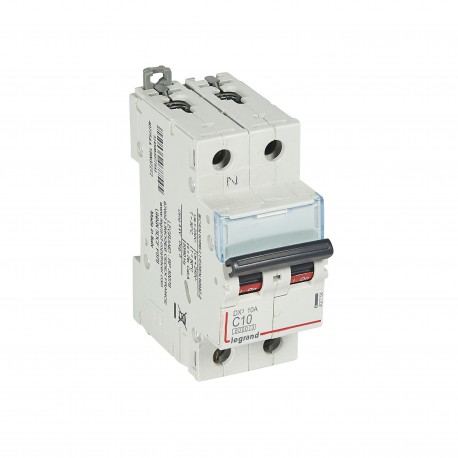

407754 LEGRAND MAGNET DX3 6/10 KA C P+N 10A
407754
407754
LEGRAND
5 Pcs.
MAGNET DX3 6/10 KA C P+N 10A
Circuit breaker DX3 6000/10 kA - 1P+N - 230 V~ - 10 A - curve C
DX³ 6000/10kA Circuit Breaker - 1P+N - 230V~ - 10A - C curve
Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
407754 LEGRAND MAGNET DX3 6/10 KA C P+N 10A is a magnetic circuit breaker built to protect residential or commercial electrical circuits from overloads and short circuits while safely switching the neutral line. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof (EF004663): No
- Connectable conductor cross section solid-core (EF007337): 1.5 mm²
- Ambient temperature during operating (EF007515): -25 °C
- Degree of protection (IP) (EF005474): IP20
- Concurrently switching neutral conductor (EF005997): Yes
- Voltage type (EF000187): AC
- Additional equipment possible (EF008148): Yes
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Number of protected poles (EF005548): 1
- Frequency (EF000416): 50 Hz
- Built-in depth (EF000218): 44 mm
- Number of poles (total) (EF008618): 2
- Pollution degree (EF002570): 2
- Width in number of modular spacings (EF002950): 2
- Rated insulation voltage Ui (EF001366): 500 V
- Connectable conductor cross section multi-wired (EF007343): 1.5 mm²
