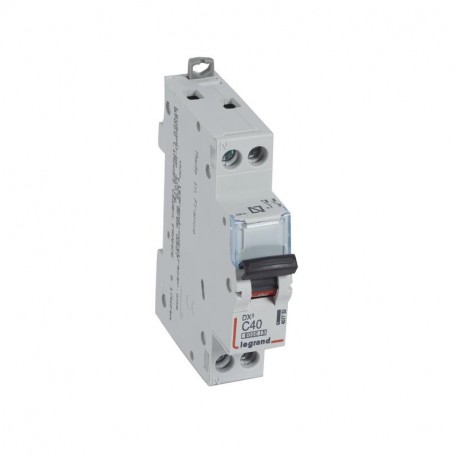

407732 LEGRAND MAGNET DX3 6/10KA P+N C40 1mod
407732
407732
LEGRAND
1 Pcs.
Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 407732 is a miniature circuit breaker designed to protect electrical circuits against overloads and short circuits in commercial buildings and industrial control panels. It automatically opens the circuit during fault conditions to safeguard connected equipment and wiring.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof (EF004663): No
- Connectable conductor cross section solid-core (EF007337): 0.75 mm²
- Ambient temperature during operating (EF007515): -25 °C
- Degree of protection (IP) (EF005474): IP20
- Concurrently switching neutral conductor (EF005997): Yes
- Voltage type (EF000187): AC
- Additional equipment possible (EF008148): Yes
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Number of protected poles (EF005548): 1
- Frequency (EF000416): 50 Hz
- Built-in depth (EF000218): 44 mm
- Number of poles (total) (EF008618): 2
- Pollution degree (EF002570): 2
- Width in number of modular spacings (EF002950): 1
- Rated insulation voltage Ui (EF001366): 250 V
- Connectable conductor cross section multi-wired (EF007343): 0.75 mm²
