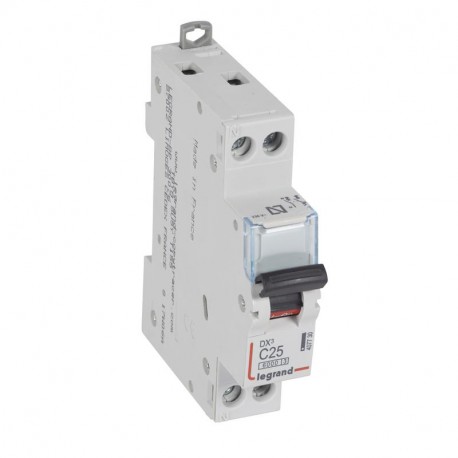

LEGRAND 407730 407730 LEGRAND MAGNET DX3 6/10KA P+N C25 1mod View larger
Images are for illustrative purposes only. Please refer to data sheet for details

407730 LEGRAND MAGNET DX3 6/10KA P+N C25 1mod

407730

407730

LEGRAND

1 Pcs.

MAGNET DX3 6/10KA P+N C25 1mod Circuit breaker DX3 6000/10 kA - 1P+N - 230 V~ - 25 A - curve C - 1 mód DX³ 6000/10kA Circuit Breaker - 1P+N - 230V~ - 25A - C curve - 1mod

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 407730 LEGRAND MAGNET DX3 6/10KA P+N C25 1mod from Legrand functions as a protective circuit breaker designed to safeguard electrical wiring and connected equipment against overloads and short circuits in residential and commercial distribution boards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 0.75 mm²
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): Yes
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 1
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 2
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 1
  • Rated insulation voltage Ui (EF001366): 250 V
  • Connectable conductor cross section multi-wired (EF007343): 0.75 mm²

More info

▲

Product features

Single-pole + neutral 230 V~ - Curve C - rated current: 25a - Number of modules: 1

General characteristics

MCB DX3 6000 - 10 kA - breakers residual current protection of 1 a To 63 A - curves C, B and D - Support connection with combs unipolar and combs multipolar Power of court: - 6000 - IEC 60898-1 - 400 V~ - 10 kA - IEC 60947-2 - 400 V~ - branded Products, N (except 1P+N 2 modules, and curve (B) - can Be equipped with blocks, breakers, controls, motor, and auxiliary control and signalling DX3 - Portaetiquetas incorporated
