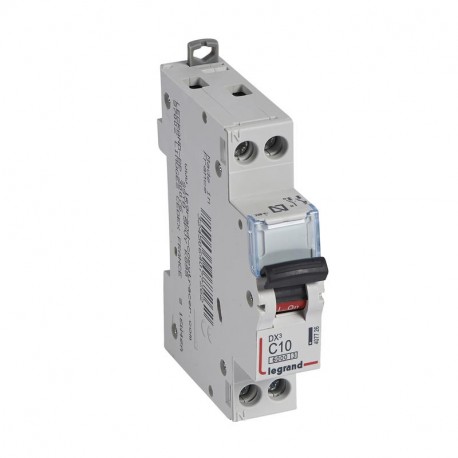

407726 LEGRAND MAGNET DX3 6/10KA P+N C10 1mod
407726
407726
LEGRAND
10 Pcs.
Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 407726 is a 407726 LEGRAND MAGNET DX3 6/10KA P+N C10 1mod used in electrical distribution systems to protect branch circuits against overcurrent and short-circuit faults. This protective component automatically interrupts electrical flow during fault conditions to safeguard connected equipment and wiring infrastructure.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof (EF004663): No
- Connectable conductor cross section solid-core (EF007337): 0.75 mm²
- Ambient temperature during operating (EF007515): -25 °C
- Degree of protection (IP) (EF005474): IP20
- Concurrently switching neutral conductor (EF005997): Yes
- Voltage type (EF000187): AC
- Additional equipment possible (EF008148): Yes
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Number of protected poles (EF005548): 1
- Frequency (EF000416): 50 Hz
- Built-in depth (EF000218): 44 mm
- Number of poles (total) (EF008618): 2
- Pollution degree (EF002570): 2
- Width in number of modular spacings (EF002950): 1
- Rated insulation voltage Ui (EF001366): 250 V
- Connectable conductor cross section multi-wired (EF007343): 0.75 mm²
