View larger
Images are for illustrative purposes only. Please refer to data sheet for details

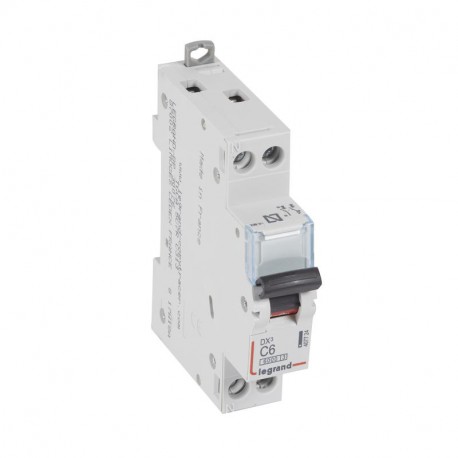

407724 LEGRAND MAGNET DX3 6/10KA P+N C6 1mod
407724
407724
LEGRAND
1 Pcs.
MAGNET DX3 6/10KA P+N C6 1mod
Circuit breaker DX3 6000/10 kA - 1P+N - 230 V~ - 6 A - curve C - 1 mód
DX³ 6000/10kA Circuit Breaker - 1P+N - 230V~ - 6A - C curve - 1mod
Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Single-pole + neutral 230 V~ - Curve C - rated current: 6 - Number of modules: 1General characteristics
MCB DX3 6000 - 10 kA - breakers residual current protection of 1 a To 63 A - curves C, B and D - Support connection with combs unipolar and combs multipolar Power of court: - 6000 - IEC 60898-1 - 400 V~ - 10 kA - IEC 60947-2 - 400 V~ - branded Products, N (except 1P+N 2 modules, and curve (B) - can Be equipped with blocks, breakers, controls, motor, and auxiliary control and signalling DX3 - Portaetiquetas incorporated| Feature Name | Feature Value |
|---|---|
| Explosion-proof (EF004663) | No |
| Connectable conductor cross section solid-core (EF007337) | 0.75 mm² |
| Ambient temperature during operating (EF007515) | -25 °C |
| Degree of protection (IP) (EF005474) | IP20 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (EF009556) | 6 kA |
| Concurrently switching neutral conductor (EF005997) | Yes |
| Voltage type (EF000187) | AC |
| Additional equipment possible (EF008148) | Yes |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V (EF009557) | 10 kA |
| Number of protected poles (EF005548) | 1 |
| Frequency (EF000416) | 50 Hz |
| Built-in depth (EF000218) | 44 mm |
| Number of poles (total) (EF008618) | 2 |
| Pollution degree (EF002570) | 2 |
| Width in number of modular spacings (EF002950) | 1 |
| Connectable conductor cross section multi-wired (EF007343) | 0.75 mm² |
| Rated current (EF000227) | 6 A |
| Current limiting class (EF002568) | 3 |
| Flush-mounted installation (EF007517) | Yes |
| Release characteristic (EF000889) | C |
| Rated voltage (EF000228) | 230 V |
