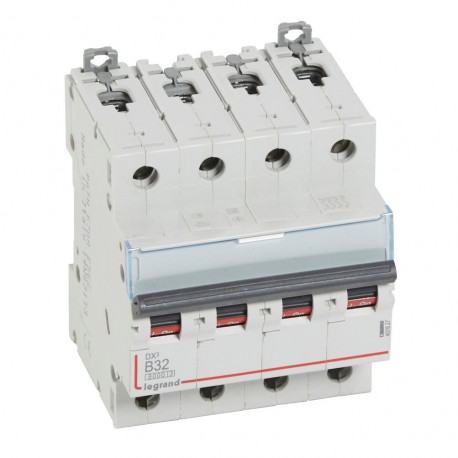

LEGRAND 407627 407627 LEGRAND MAGNET DX3 6/10KA B 4P 32A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

407627 LEGRAND MAGNET DX3 6/10KA B 4P 32A

407627

407627

LEGRAND

1 Pcs.

MAGNET DX3 6/10KA B 4P 32A MCB - DX³ 6000 - 10 kA - 4P 400 V~ - 32 A - B curve DX³ 6000/10kA Circuit Breaker - 4P - 400V~ - 32A - B curve

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand magnetic circuit breaker, catalog number 407627, serves as an essential safety component for managing and protecting electrical distribution systems against excessive current draw and short circuits. Such devices are deployed in industrial panels to isolate faulty circuits and prevent damage to downstream assets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 1.5 mm²
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): Yes
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 4
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 4
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 4
  • Rated insulation voltage Ui (EF001366): 500 V
  • Connectable conductor cross section multi-wired (EF007343): 1.5 mm²

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.716
  • Weight (g)578.00
Product characteristics
4-pole 400 V~
  • B curve
  • NominaI rating In : 32 A
  • Number of modules : 4
General characteristics
MCBs DX³ 6000 - 10 kA - thermal magnetic circuit breakers from 1 A to 63 A - B and C curves
  • Conform to IEC 60898-1
  • Compatible with both, prong-type and fork type supply busbars
  • Breaking capacity
  • 6000 - IEC 60898-1 - 400 V~
  • 10 kA - IEC 60947-2 - 400 V~
  • Can be equipped with DX³ signalling and remote tripping auxiliaries, motorised controls and add-on modules
