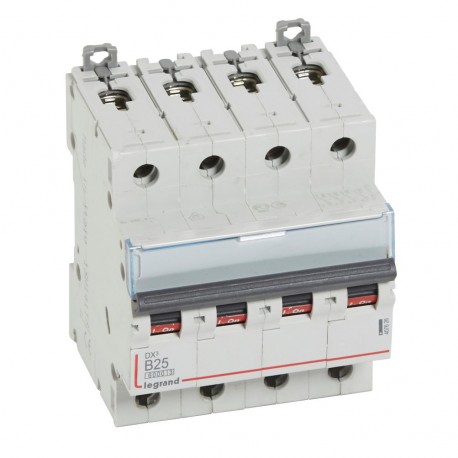

407626 LEGRAND MAGNET DX3 6/10KA B 4P 25A
407626
407626
LEGRAND
1 Pcs.
Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 407626 LEGRAND MAGNET DX3 6/10KA B 4P 25A acts as a dependable protective device that automatically cuts off electrical power during overloads and short circuits. Four-pole circuit breakers are deployed in electrical distribution systems to safeguard complex multi-phase circuits and prevent equipment damage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Explosion-proof (EF004663): No
- Connectable conductor cross section solid-core (EF007337): 1.5 mm²
- Ambient temperature during operating (EF007515): -25 °C
- Degree of protection (IP) (EF005474): IP20
- Concurrently switching neutral conductor (EF005997): Yes
- Voltage type (EF000187): AC
- Additional equipment possible (EF008148): Yes
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Number of protected poles (EF005548): 4
- Frequency (EF000416): 50 Hz
- Built-in depth (EF000218): 44 mm
- Number of poles (total) (EF008618): 4
- Pollution degree (EF002570): 2
- Width in number of modular spacings (EF002950): 4
- Rated insulation voltage Ui (EF001366): 500 V
- Connectable conductor cross section multi-wired (EF007343): 1.5 mm²
More info
▲- Pack (number of units)1
- Volume (dm3)0.716
- Weight (g)560.00
- B curve
- NominaI rating In : 25 A
- Number of modules : 4
- Conform to IEC 60898-1
- Compatible with both, prong-type and fork type supply busbars
- Breaking capacity
- 6000 - IEC 60898-1 - 400 V~
- 10 kA - IEC 60947-2 - 400 V~
- Can be equipped with DX³ signalling and remote tripping auxiliaries, motorised controls and add-on modules
