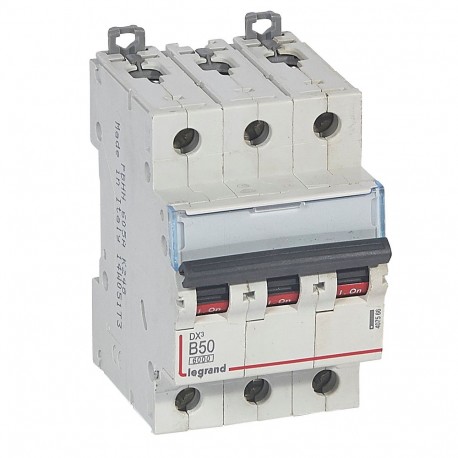

LEGRAND 407566 407566 LEGRAND MAGNET DX3 6/10KA B, 3P, 50A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

407566 LEGRAND MAGNET DX3 6/10KA B, 3P, 50A

407566

407566

LEGRAND

1 Pcs.

MAGNET DX3 6/10KA B, 3P, 50A MCB - DX³ 6000 - 10 kA - 3P 400 V~ - 50 A - B curve DX³ 6000/10kA Circuit Breaker - 3P - 400V~ - 50A - B curve

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand part number 407566 is a magnet DX3 3-pole circuit protection device built to handle fault currents and prevent overloads in commercial electrical grids. Protective switches of this category are standard installations within distribution enclosures to secure downstream electrical loads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 1.5 mm²
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): No
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 3
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 3
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 3
  • Rated insulation voltage Ui (EF001366): 500 V
  • Connectable conductor cross section multi-wired (EF007343): 1.5 mm²

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.716
  • Weight (g)475.00
Product characteristics
3-pole 400 V~
  • B curve
  • NominaI rating In : 50 A
  • Number of modules : 3
General characteristics
MCBs DX³ 6000 - 10 kA - thermal magnetic circuit breakers from 1 A to 63 A - B and C curves
  • Conform to IEC 60898-1
  • Compatible with both, prong-type and fork type supply busbars
  • Breaking capacity
  • 6000 - IEC 60898-1 - 400 V~
  • 10 kA - IEC 60947-2 - 400 V~
  • Can be equipped with DX³ signalling and remote tripping auxiliaries, motorised controls and add-on modules
