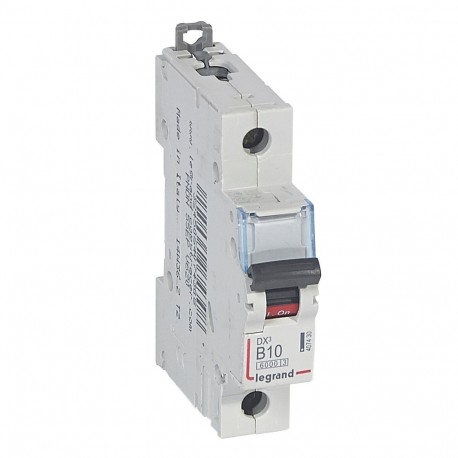

LEGRAND 407430 407430 LEGRAND MAGNET DX3 6/10 KA B 1P 10A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

407430 LEGRAND MAGNET DX3 6/10 KA B 1P 10A

407430

407430

LEGRAND

10 Pcs.

MAGNET DX3 6/10 KA B 1P 10A DX³ 6000A 1 Pole 10A MCB B Curve 10kA MCB DX³ 6000A 1 pole 10A curve B

Automation > Miniature circuit breaker (MCB)
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Integrated into electrical enclosures, the 407430 LEGRAND MAGNET DX3 6/10 KA B 1P 10A functions as an automatic circuit protector. It disconnects power during overload or short-circuit events to protect wiring infrastructure and connected electrical loads from damage.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 1.5 mm²
  • Ambient temperature during operating (EF007515): -25 °C
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): No
  • Voltage type (EF000187): AC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 4 kV
  • Number of protected poles (EF005548): 1
  • Frequency (EF000416): 50 Hz
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 1
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 1
  • Rated insulation voltage Ui (EF001366): 500 V
  • Connectable conductor cross section multi-wired (EF007343): 1.5 mm²

More info

▲
Built-in depth44 mm
Release characteristicB
Number of poles (total)1
Number of protected poles1
Rated current10 A
Rated voltage230 V
Rated insulation voltage Ui500 V
Rated impulse withstand voltage Uimp4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10 kA
Frequency50-60 Hz
Current limiting class3
Flush-mounted installationYes
Concurrently switching neutral conductorNo
Pollution degree2
Additional equipment possibleYes
Width in number of modular spacings1
Degree of protection (IP)IP20
Ambient temperature during operating-25-70 °C
Connectable conductor cross section multi-wired1.5-25 mm²
Connectable conductor cross section solid-core1.5-35 mm²
Explosion-proofNo
Width17.8 mm
Height94.8 mm
Depth77.8 mm
degree of impact strength (IK)IK02
Storage temperature-40-70 °C
Electric supplying directionBy the top or bottom
ColourGrey
RAL-number7035
Halogen freeYes
Connection typeScrewed terminal
Label space/information surfaceYes
Mounting methodDIN rail
