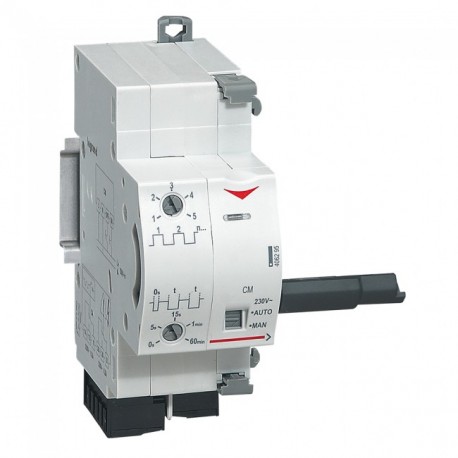

406295 LEGRAND DX3 REMOTE CONTROL MOTORIZED RECONEX
406295
406295
LEGRAND
1 Pcs.
DX3 REMOTE CONTROL MOTORIZED RECONEX
Motorised control DX³ 230 V~ - automatic resetting - 2 modules
DX³ motorized control - 230V~ - 2mod/pole - with automatic reconnection
Automation > Auxiliary device for distribution board devices
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)1.188
- Weight (g)225.00
Product characteristics
Motorised controls- For remote control (opening and closing) of their associated device.
- To fit on the left-hand side of DX³ and TX³ devices
- For MCBs, RCBOs, RCCBs and remote trip isolating switches (from 1P to 4P)
- Can take one control auxiliary and one signalling auxiliary.
- No tool required for joining together the motorised control and the main device
- Automatically resets the device to which it is associated, thus ensuring continuity of service
- Control voltage : 230 V~
- Number of modules : 2
General characteristics
Signalling, remote tripping auxiliaries and motorised controls DX³| Feature Name | Feature Value |
|---|---|
| Function (EF000030) | Remote turn-on switch |
| Number of fault-signal switches (EF007613) | 0 |
| Number of contacts as change-over contact (EF008257) | 1 |
| Width in number of modular spacings (EF002950) | 2 |
| Suitable for max. current main contact unit (EF008730) | 125 A |
| Voltage type (EF000187) | AC/DC |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Rated switch current (EF006706) | 0.2 A |
| With auto test for earth leakage function (EF008727) | No |
| Rated voltage (EF000228) | 230 V |
| Device fitting (EF007826) | Universal |
| Suitable for max. number of poles main contact unit (total) (EF008729) | 4 |
