View larger
Images are for illustrative purposes only. Please refer to data sheet for details

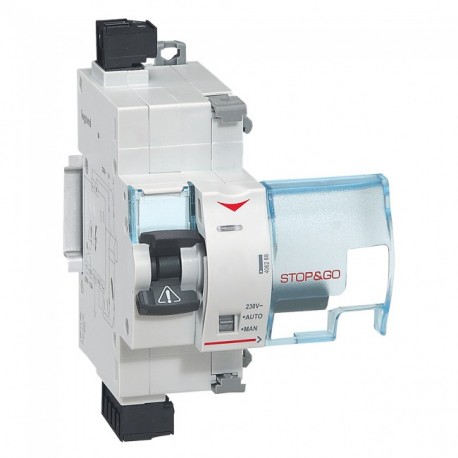

406288 LEGRAND DISCONNECT STOP
406288
406288
LEGRAND
1 Pcs.
DISCONNECT STOP
Stop and go automatic resetting for DX³ 230 V~ - standard - 2 modules
STOP/GO DX³ Automatic Recloser - 230V~ - 2mod - standard
Automation > Auxiliary device for distribution board devices
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)1.188
- Weight (g)238.00
Product characteristics
STOP&GO automatic resetting- For automatic resetting of 1 module per pole RCCBs and RCBOs up to 63 A
- STOP&GO is used in the event of unwanted tripping generated by temporarily electrical disturbances or other external events. Can take one control auxiliary and one signalling auxiliary. The signalling auxiliary must be placed between the STOP&GO and the control auxiliary. No tool required for assembling
- Control voltage : 230 V~
- Number of modules : 2
General characteristics
STOP&GO connected kit and automatic resetting| Feature Name | Feature Value |
|---|---|
| Function (EF000030) | Monitoring unit with automatic reclosing |
| Number of fault-signal switches (EF007613) | 0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Width in number of modular spacings (EF002950) | 2 |
| Suitable for max. current main contact unit (EF008730) | 63 A |
| Voltage type (EF000187) | AC |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Rated switch current (EF006706) | 0.2 A |
| With auto test for earth leakage function (EF008727) | No |
| Rated voltage (EF000228) | 230 V |
| Device fitting (EF007826) | Earth leakage switch |
| Suitable for max. number of poles main contact unit (total) (EF008729) | 2 |
