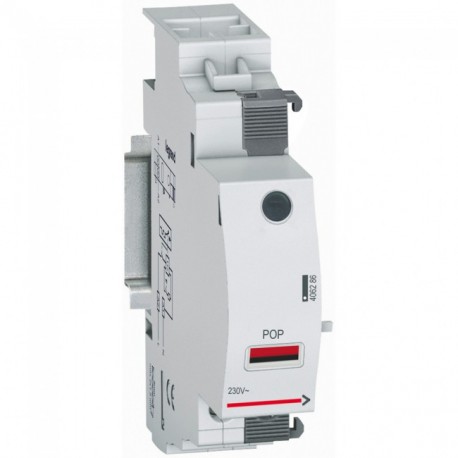

LEGRAND 406286 406286 LEGRAND COIL DISCONNECT POP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

406286 LEGRAND COIL DISCONNECT POP

406286

406286

LEGRAND

1 Pcs.

COIL DISCONNECT POP Power overvoltage protection (POP) DX³ - 275 V - 1 module Voltage threshold trigger "POP" - DX³ - threshold at 275 V~

Automation > Auxiliary device for distribution board devices
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 406286 coil disconnect pop is a shunt trip release accessory engineered to interface cleanly with circuit protection devices for remote isolation. These mechanisms are widely used in commercial buildings and industrial plants to drop main breakers during fire alarms or safety interlocks.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Shunt release (for power circuit breaker)
  • Number of fault-signal switches (EF007613): 0
  • Number of contacts as change-over contact (EF008257): 0
  • Width in number of modular spacings (EF002950): 1
  • Suitable for max. current main contact unit (EF008730): 125 A
  • Voltage type (EF000187): AC
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as normally open contact (EF008256): 0
  • With auto test for earth leakage function (EF008727): No
  • Rated voltage (EF000228): 230 V
  • Device fitting (EF007826): Universal

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.219
  • Weight (g)74.00
Product characteristics
Remote tripping auxiliaries
  • To fit on the left-hand side of DX³ and TX³ devices
  • Maximum 1 remote tripping auxiliary per device
  • Allow insertion of the supply busbar
  • No tool required for joining together the auxiliary and the main device.
  • For MCBs, RCBOs, RCCBs and remote trip isolating switches
Power overvoltage protection (POP)
  • Protects the circuit by tripping its associated device in case of overvoltage between phase and neutral.
  • Tripping threshold : 275 V (eg. in case of neutral interruption)
  • Protects the circuit by tripping its associated device in case of overvoltage between phase and neutral.
  • Tripping threshold : 275 V (eg. in case of neutral interruption)
  • Number of modules : 1
General characteristics
Signalling, remote tripping auxiliaries and motorised controls DX³
