View larger
Images are for illustrative purposes only. Please refer to data sheet for details

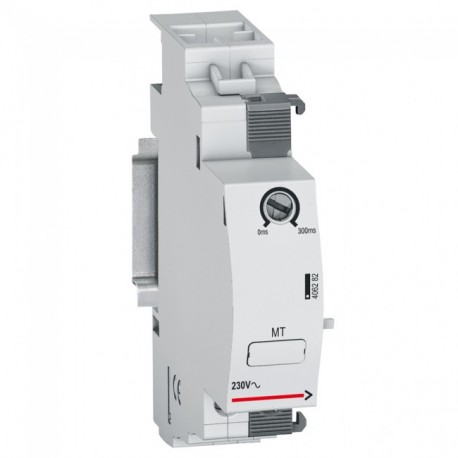

406282 LEGRAND DISCONNECT SWITCH, MINIMUM TENSION
406282
406282
LEGRAND
1 Pcs.
DISCONNECT SWITCH, MINIMUM TENSION
Undervoltage release DX³ 230 V~ - time delay adjustable from 0 to 300 ms
DX³ Minimum Voltage Trip Coil - 230V~/=
Automation > Auxiliary device for distribution board devices
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.219
- Weight (g)80.00
Product characteristics
Remote tripping auxiliaries- To fit on the left-hand side of DX³ and TX³ devices
- Maximum 1 remote tripping auxiliary per device
- Allow insertion of the supply busbar
- No tool required for joining together the auxiliary and the main device.
- For MCBs, RCBOs, RCCBs and remote trip isolating switches
- For remote tripping of its associated device in case of mains voltage drop down or with the help of a N/C push button
- 230 V~
- Number of modules : 1
General characteristics
Signalling, remote tripping auxiliaries and motorised controls DX³| Feature Name | Feature Value |
|---|---|
| Function (EF000030) | Under voltage coil |
| Number of fault-signal switches (EF007613) | 0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Width in number of modular spacings (EF002950) | 1 |
| Suitable for max. current main contact unit (EF008730) | 125 A |
| Voltage type (EF000187) | AC |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| With auto test for earth leakage function (EF008727) | No |
| Rated voltage (EF000228) | 230 V |
| Device fitting (EF007826) | Universal |
| Suitable for max. number of poles main contact unit (total) (EF008729) | 4 |
