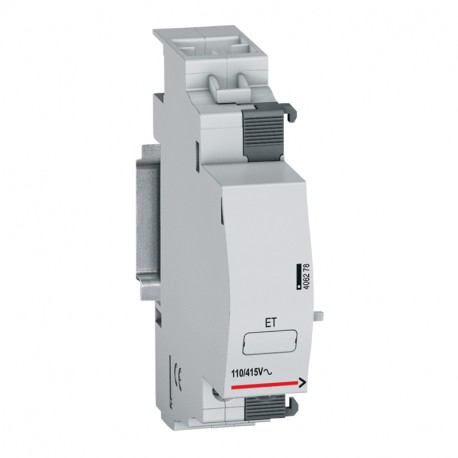

LEGRAND 406278 406278 LEGRAND DISCONNECT TO RELEASE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

406278 LEGRAND DISCONNECT TO RELEASE

406278

406278

LEGRAND

1 Pcs.

DISCONNECT TO RELEASE Current shunt trip DX³ - 110 to 415 V~ DX³ Voltage Emission Trip Coil - 110 to 415 V~/=

Automation > Auxiliary device for distribution board devices
TERTIARY CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand 406278 disconnect to release mechanism is a modular auxiliary component utilized in industrial control panels to trigger circuit breakers from a distance. Such devices ensure rapid electrical isolation and safe shutdown procedures across complex machinery configurations.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Shunt release (for power circuit breaker)
  • Number of fault-signal switches (EF007613): 0
  • Number of contacts as change-over contact (EF008257): 1
  • Width in number of modular spacings (EF002950): 1
  • Suitable for max. current main contact unit (EF008730): 125 A
  • Voltage type (EF000187): AC/DC
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Rated switch current (EF006706): 6 A
  • With auto test for earth leakage function (EF008727): No
  • Rated voltage (EF000228): 415 V
  • Device fitting (EF007826): Universal

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.219
  • Weight (g)109.00
Product characteristics
Remote tripping auxiliaries
  • To fit on the left-hand side of DX³ and TX³ devices
  • Maximum 1 remote tripping auxiliary per device
  • Allow insertion of the supply busbar
  • No tool required for joining together the auxiliary and the main device.
  • For MCBs, RCBOs, RCCBs and remote trip isolating switches
Current shunt trips
  • For remote tripping of its associated device via a N/O push button
  • 110 to 415 V~
  • Number of modules : 1
General characteristics
Signalling, remote tripping auxiliaries and motorised controls DX³
