View larger
Images are for illustrative purposes only. Please refer to data sheet for details

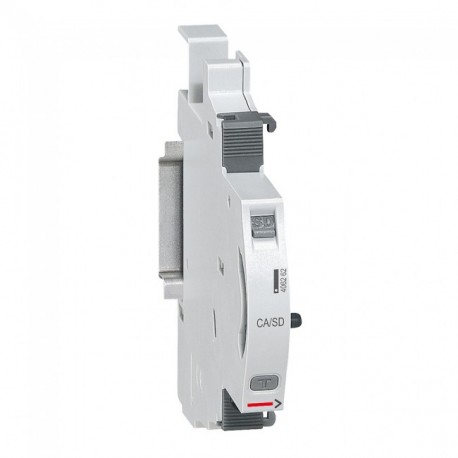

406262 LEGRAND CONTACT AUX./SIGNAL DEFAULT
406262
406262
LEGRAND
1 Pcs.
CONTACT AUX./SIGNAL DEFAULT
DX³ 6A Auxiliary Changeover/Fault Signalling Switch
Auxiliary Contact or Inverter Fault Signal DX³ - 6A - 240V~
Automation > Auxiliary device for distribution board devices
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Auxiliaries for RCBOs Clip on the left hand side of the RCBO (maximum 3) Allow insertion of the supply busbar at the top Auxiliaries common to DX3 MCBs, RCDs and RCBOs Auxiliary changeover switch, 6 A - 250 V which can be modified to a fault signalling switch
| Device fitting | Universal |
|---|---|
| Function | Auxiliary switch/fault-signal switch |
| Width in number of modular spacings | 0.5 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as change-over contact | 1 |
| Number of fault-signal switches | 0 |
| Rated switch current | 6 A |
| Rated voltage | 240 V |
|---|---|
| Voltage type | AC/DC |
| With auto test for earth leakage function | No |
| Suitable for max. number of poles main contact unit (total) | 4 |
| Suitable for max. current main contact unit | 125 A |
| Width | 8.8 mm |
| Height | 84.5 mm |
| Depth | 77.7 mm |
| Feature Name | Feature Value |
|---|---|
| Function (EF000030) | Auxiliary switch / fault-signal switch |
| Number of fault-signal switches (EF007613) | 0 |
| Number of contacts as change-over contact (EF008257) | 1 |
| Width in number of modular spacings (EF002950) | 0.5 |
| Suitable for max. current main contact unit (EF008730) | 125 A |
| Voltage type (EF000187) | AC/DC |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Rated switch current (EF006706) | 6 A |
| With auto test for earth leakage function (EF008727) | No |
| Rated voltage (EF000228) | 240 V |
| Device fitting (EF007826) | Universal |
| Suitable for max. number of poles main contact unit (total) (EF008729) | 4 |
