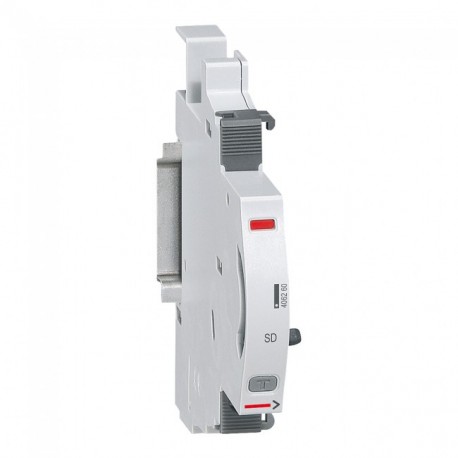

406260 LEGRAND CONTACT SIGNAL DEFAULT
406260
406260
LEGRAND
1 Pcs.
CONTACT SIGNAL DEFAULT
DX³ 6A Fault Signalling Changeover Switch
Contact inverter fault signal DX³ - 6A - 240V~
Automation > Auxiliary device for distribution board devices
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A 406260 LEGRAND CONTACT SIGNAL DEFAULT functions as a dedicated fault signaling contact that distinguishes between manual operations and unexpected electrical trips in distribution boards.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Auxiliary switch / fault-signal switch
- Number of fault-signal switches (EF007613): 0
- Number of contacts as change-over contact (EF008257): 1
- Width in number of modular spacings (EF002950): 0.5
- Suitable for max. current main contact unit (EF008730): 125 A
- Voltage type (EF000187): AC/DC
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as normally open contact (EF008256): 0
- Rated switch current (EF006706): 6 A
- With auto test for earth leakage function (EF008727): No
- Rated voltage (EF000228): 240 V
- Device fitting (EF007826): Universal
More info
▲
Auxiliaries for RCBOs Clip on the left hand side of the RCBO (maximum 3) Allow insertion of the supply busbar at the top Auxiliaries common to DX3 MCBs, RCDs and RCBOs Fault signalling changeover switch, 6 A - 250 V± Indicates tripping of the RCBO at a fault
| Device fitting | Universal |
|---|---|
| Function | Auxiliary switch/fault-signal switch |
| Width in number of modular spacings | 0.5 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as change-over contact | 1 |
| Number of fault-signal switches | 0 |
| Rated switch current | 6 A |
| Rated voltage | 240 V |
|---|---|
| Voltage type | AC/DC |
| With auto test for earth leakage function | No |
| Suitable for max. number of poles main contact unit (total) | 4 |
| Suitable for max. current main contact unit | 125 A |
| Width | 8.8 mm |
| Height | 84.5 mm |
| Depth | 77.7 mm |
