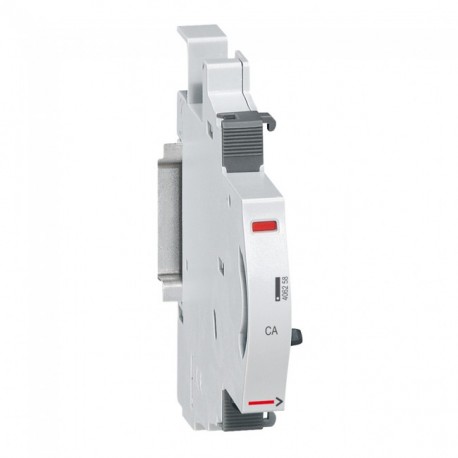

406258 LEGRAND AUXILIARY CONTACT INVESTOR
406258
406258
LEGRAND
1 Pcs.
AUXILIARY CONTACT INVESTOR
DX³ 6A Auxiliary Changeover Switch
DX³ Inverter Auxiliary Contact - 6A - 240V~
Automation > Auxiliary device for distribution board devices
TERTIARY CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
406258 LEGRAND AUXILIARY CONTACT INVESTOR from Legrand operates as an auxiliary switch module that mounts onto switching hardware to provide reliable remote indication of breaker contact positions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Auxiliary switch
- Number of fault-signal switches (EF007613): 0
- Number of contacts as change-over contact (EF008257): 1
- Width in number of modular spacings (EF002950): 0.5
- Suitable for max. current main contact unit (EF008730): 125 A
- Voltage type (EF000187): AC/DC
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as normally open contact (EF008256): 0
- Rated switch current (EF006706): 6 A
- With auto test for earth leakage function (EF008727): No
- Rated voltage (EF000228): 240 V
- Device fitting (EF007826): Universal
More info
▲
Auxiliaries for RCBOs Clip on the left hand side of the RCBO (maximum 3) Allow insertion of the supply busbar at the top Auxiliaries common to DX3 MCBs, RCDs and RCBOs Signalling auxiliaries Number of modules Auxiliary changeover switch, 6 A - 250 V± Indicates the position of the contacts
| Device fitting | Universal |
|---|---|
| Function | Auxiliary switch |
| Width in number of modular spacings | 0.5 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as change-over contact | 1 |
| Number of fault-signal switches | 0 |
| Rated switch current | 6 A |
| Rated voltage | 240 V |
|---|---|
| Voltage type | AC/DC |
| With auto test for earth leakage function | No |
| Suitable for max. number of poles main contact unit (total) | 4 |
| Suitable for max. current main contact unit | 125 A |
| Width | 8.8 mm |
| Height | 84.5 mm |
| Depth | 77.7 mm |
