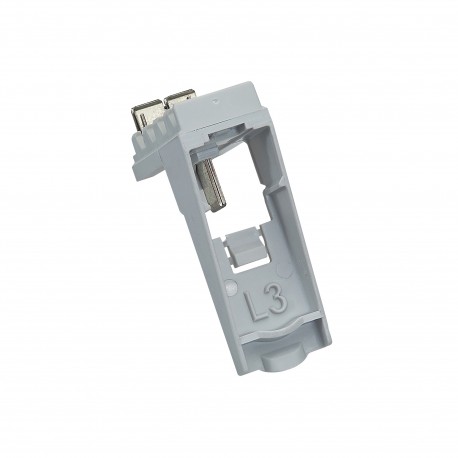

LEGRAND 405249 405249 LEGRAND 10 plug-IN MODULES L3 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

405249 LEGRAND 10 plug-IN MODULES L3

405249

405249

LEGRAND

1 Pcs.

10 plug-IN MODULES L3 Game connection module L3 for dealer row 125A HX3 L3 connection demod set for row splitter 125A HX³

Automation > Phase busbar
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand plug-in module (part number 405249) acts as an accessory component used alongside modular circuit protection devices to facilitate orderly power distribution within electrical enclosures. These modular links establish secure electrical continuity between neighboring distribution apparatus without requiring complex wire jumpers.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for devices with auxiliary switch (EF007217): No
  • Suitable for devices with N-conductor (EF007218): No
  • Number of phases (EF000351): 1
  • Width in number of modular spacings (EF002950): 1
  • Max. rated operation voltage Ue (EF007357): 400 V
  • Rated permanent current Iu (EF001389): 80 A
  • Type of electric connection (EF003961): Fork
  • Suitable for number of devices (EF007241): 1
  • Number of poles (EF001391): 1
  • Colour (EF000007): Grey
  • Insulated (EF000019): Yes

More info

▲

Product features

Dealer of row 125 TO HX3 IS basic plug-in Modules - Allow the connection and the automatic disconnection of the modular apparatuses in the dealer row 125 - set of 10 plug-in modules L3

General characteristics

Distribution IS horizontal HX3 IS - up to 125 in cabinet XL3 4000

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
