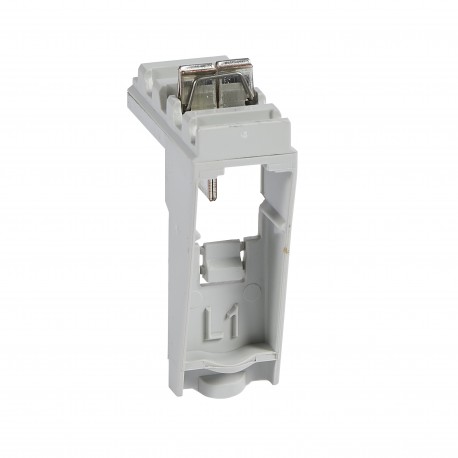

405247 LEGRAND 10 CONNECTION MODULES L1
405247
405247
LEGRAND
1 Pcs.
10 CONNECTION MODULES L1
Game connection module L1 for dealer row 125A HX3
L1 connection demod set for row splitter 125A HX³
Automation > Phase busbar
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Dealer of row 125 TO HX3 IS basic plug-in Modules - Allow the connection and the automatic disconnection of the modular apparatuses in the dealer row 125 - set of 10 plug-in modules L1General characteristics
Distribution IS horizontal HX3 IS - up to 125 in cabinet XL3 4000| Feature Name | Feature Value |
|---|---|
| Suitable for devices with auxiliary switch (EF007217) | No |
| Suitable for devices with N-conductor (EF007218) | No |
| Number of phases (EF000351) | 1 |
| Width in number of modular spacings (EF002950) | 1 |
| Max. rated operation voltage Ue (EF007357) | 400 V |
| Rated permanent current Iu (EF001389) | 80 A |
| Type of electric connection (EF003961) | Fork |
| Suitable for number of devices (EF007241) | 1 |
| Number of poles (EF001391) | 1 |
| Colour (EF000007) | Grey |
| Insulated (EF000019) | Yes |
