View larger
Images are for illustrative purposes only. Please refer to data sheet for details

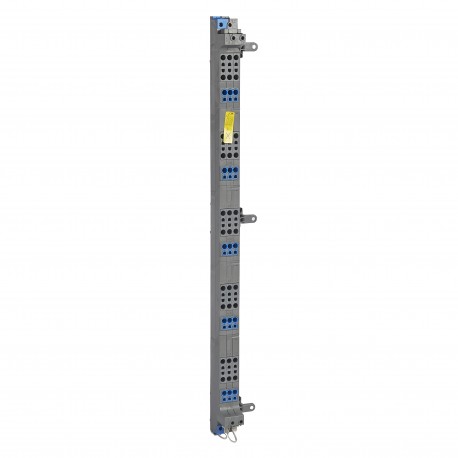

405026 LEGRAND REPART VERT TETRAPOLAR 63A 6R
405026
405026
LEGRAND
1 Pcs.
REPART VERT TETRAPOLAR 63A 6R
Combs vertical VX3 self - 63 To - to boxes 6 rows
VX³ auto vertical combs - 63A for 6-row boxes
Automation > Phase busbar
SPLITTERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Combs vertical 63 A VX3 self - Assembling in the boxes Plexo3, XL3 125, XL3 160 - Capacity of the terminals: - power supply: 6 to 16 mm2 (flexible)/25 mm2 (rigid) - outputs: 4 to 10 mm2 (flexible or rigid) - For case 6 rows - 10 outputs per phase (x3) + 15 outputs neutralGeneral characteristics
Vertical distribution VX3 auto 63 and 125 A - combs tetrapolares with terminals automatic - Combs tetrapolares IP XXB equipped with terminal output auto - Enable sharing by flexible wires with or without leading - Feeding through the top or bottom terminals with screws - which Include seals for the terminals of power is not used and locking legs for side-mount in the boxes - Not to make any intervention under tension| Feature Name | Feature Value |
|---|---|
| Suitable for devices with auxiliary switch (EF007217) | No |
| Suitable for devices with N-conductor (EF007218) | Yes |
| Module width (EF007504) | 150 mm |
| Number of phases (EF000351) | 3 |
| Conditioned rated short-circuit current Iq (EF001444) | 0.63 kA |
| Max. rated operation voltage Ue (EF007357) | 400 V |
| Rated permanent current Iu (EF001389) | 63 A |
| Rated surge voltage (EF002993) | 2 kV |
| Type of electric connection (EF003961) | Other |
| Suitable for number of devices (EF007241) | 10 |
| Rated short-time withstand current lcw (EF007050) | 3 kA |
| Number of poles (EF001391) | 45 |
| Colour (EF000007) | Grey |
| Can be cut to size (EF015250) | No |
| Insulated (EF000019) | Yes |
| Length (EF001438) | 711 mm |
| Cross section (EF000649) | 25 mm² |
