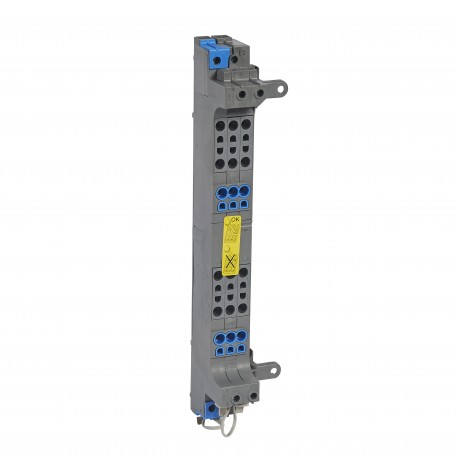

405023 LEGRAND REPART VERT TETRAPOLAR 63A 3R
405023
405023
LEGRAND
1 Pcs.
Automation > Phase busbar
SPLITTERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Legrand 405023 tetrapolar distribution block simplifies power feed management and phase distribution across multiple modular devices in industrial or commercial switchboards. Enclosure distribution blocks provide a centralized junction point to split incoming power feeds safely to various sub-circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable for devices with auxiliary switch (EF007217): No
- Suitable for devices with N-conductor (EF007218): Yes
- Module width (EF007504): 150 mm
- Number of phases (EF000351): 3
- Conditioned rated short-circuit current Iq (EF001444): 0.63 kA
- Max. rated operation voltage Ue (EF007357): 400 V
- Rated permanent current Iu (EF001389): 63 A
- Rated surge voltage (EF002993): 2 kV
- Suitable for number of devices (EF007241): 4
- Rated short-time withstand current lcw (EF007050): 3 kA
- Number of poles (EF001391): 18
- Colour (EF000007): Grey
- Can be cut to size (EF015250): No
- Insulated (EF000019): Yes
- Length (EF001438): 336 mm
- Cross section (EF000649): 25 mm²
