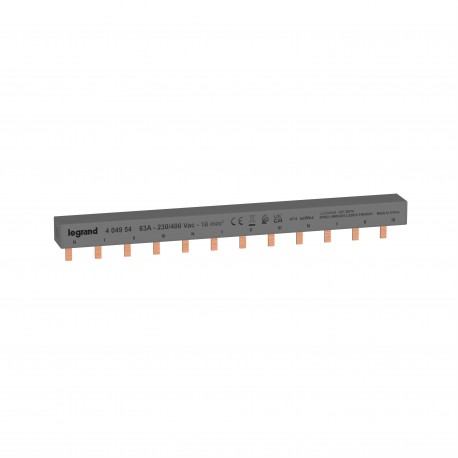

404954 LEGRAND 4P 1 ROW COMB
404954
404954
LEGRAND
10 Pcs.
Automation > Phase busbar
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Legrand 404954 comb busbar provides a reliable multi-pole distribution rail for connecting modular electrical protection devices within commercial and industrial enclosures. Factory-assembled comb links organize panel wiring by bridging supply phases cleanly across neighboring protective devices. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable for devices with auxiliary switch (EF007217): No
- Suitable for devices with N-conductor (EF007218): Yes
- Module width (EF007504): 17.8 mm
- Number of phases (EF000351): 3
- Width in number of modular spacings (EF002950): 3
- Conditioned rated short-circuit current Iq (EF001444): 0.63 kA
- Max. rated operation voltage Ue (EF007357): 400 V
- Rated permanent current Iu (EF001389): 63 A
- Rated surge voltage (EF002993): 2 kV
- Rated short-time withstand current lcw (EF007050): 1.2 kA
- Number of poles (EF001391): 4
- Colour (EF000007): Grey
- Can be cut to size (EF015250): Yes
- Insulated (EF000019): Yes
- Cross section (EF000649): 10 mm²
More info
▲| Depth | 213 mm |
|---|---|
| Number of phases | 3 |
| Number of poles | 4 |
| Partition Measure | 17.8 mm |
| Section | 10 mm² |
| Can be cut to size | Yes |
| Width in number of modular spaces | 3 |
| Permanent nominal current Iu | 63 A |
| Isolated | Yes |
| Nominal voltage peaks | 2 kV |
| Conditional Short-Circuit Current Rating Iq | 0.63 kA |
| Maximum rated operating voltage Ue | 400 V |
|---|---|
| Icw short-duration rated current resistance | 1.2 kA |
| Suitable for devices with neutral conductor | Yes |
| Suitable for devices with auxiliary switch | No |
| Colour | Grey |
| Height | 27.7 mm |
| Operating Temperature (Min-Max) | -20-50 °C |
| Storage Temperature (Min-Max) | -40-70 °C |
| Halogen-free | No |
| Busbar type supplied | Horizontal |
