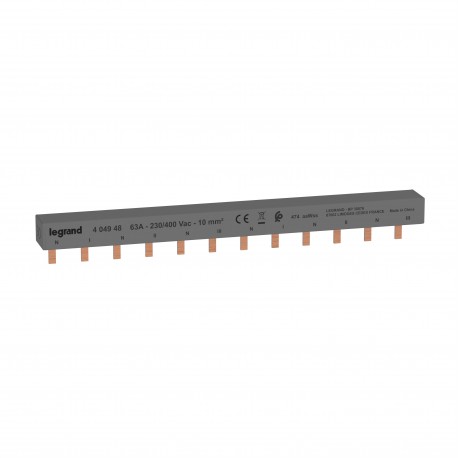

404948 LEGRAND 2P ALIM TETRAP COMB 1 ROW
404948
404948
LEGRAND
10 Pcs.
2P ALIM TETRAP COMB 1 ROW
2P Universal Power Comb with Tetrapolar Power Feed - 12 Modules
Automation > Phase busbar
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Bipolar comb with tetrapolar power 12 module. Traditional HX³ combs for terminal blocks with screws - Allow the supply of a row or a group of equipment Bipolar combs balanced in 3 phases - Supplied with protections at the ends - Length: 12 modules - Maximum number of connectable devices: 6. Horizontal distribution HX³ up to 63A - distribution by traditional combs.
| Depth | 213 mm |
|---|---|
| Number of phases | 3 |
| Number of poles | 2 |
| Partition Measure | 17.8 mm |
| Section | 10 mm² |
| Can be cut to size | Yes |
| Width in number of modular spaces | 6 |
| Permanent nominal current Iu | 63 A |
| Isolated | Yes |
| Nominal voltage peaks | 2 kV |
| Conditional Short-Circuit Current Rating Iq | 0.63 kA |
| Maximum rated operating voltage Ue | 400 V |
|---|---|
| Icw short-duration rated current resistance | 1.2 kA |
| Suitable for devices with neutral conductor | Yes |
| Suitable for devices with auxiliary switch | No |
| Colour | Grey |
| Height | 27.8 mm |
| Operating Temperature (Min-Max) | -20-50 °C |
| Storage Temperature (Min-Max) | -40-70 °C |
| Halogen-free | No |
| Busbar type supplied | Horizontal |
| Feature Name | Feature Value |
|---|---|
| Suitable for devices with auxiliary switch (EF007217) | No |
| Suitable for devices with N-conductor (EF007218) | Yes |
| Module width (EF007504) | 17.8 mm |
| Number of phases (EF000351) | 3 |
| Width in number of modular spacings (EF002950) | 6 |
| Conditioned rated short-circuit current Iq (EF001444) | 0.63 kA |
| Max. rated operation voltage Ue (EF007357) | 400 V |
| Rated permanent current Iu (EF001389) | 63 A |
| Rated surge voltage (EF002993) | 2 kV |
| Rated short-time withstand current lcw (EF007050) | 1.2 kA |
| Number of poles (EF001391) | 2 |
| Colour (EF000007) | Grey |
| Can be cut to size (EF015250) | Yes |
| Insulated (EF000019) | Yes |
| Cross section (EF000649) | 10 mm² |
