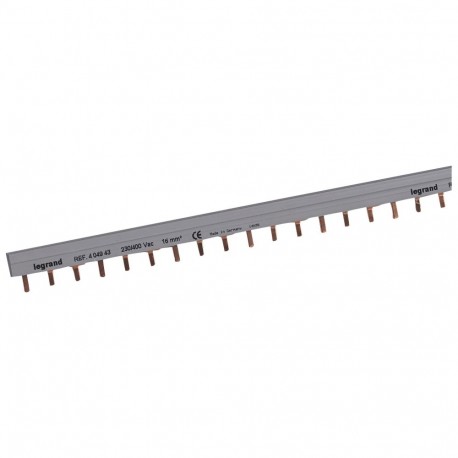

404943 LEGRAND COMB TRIPOLAR 57 MOD
404943
404943
LEGRAND
10 Pcs.
COMB TRIPOLAR 57 MOD
Supply busbar - prong-type - 3P - max 19 devices connected - meter
Universal tripolar feed comb - L. 1m
Automation > Phase busbar
SPLITTERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)10
- Volume (dm3)8.00
- Weight (g)6 419.00
Product characteristics
Prong-type supply busbarsThree pole
- Length : Meter
- Max. number of devices connected : 19
General characteristics
Supply busbars, entry terminals - "standard" distribution| Feature Name | Feature Value |
|---|---|
| Suitable for devices with auxiliary switch (EF007217) | No |
| Suitable for devices with N-conductor (EF007218) | No |
| Module width (EF007504) | 17.7 mm |
| Number of phases (EF000351) | 3 |
| Width in number of modular spacings (EF002950) | 56 |
| Conditioned rated short-circuit current Iq (EF001444) | 0.63 kA |
| Max. rated operation voltage Ue (EF007357) | 400 V |
| Rated permanent current Iu (EF001389) | 63 A |
| Rated surge voltage (EF002993) | 2 kV |
| Type of electric connection (EF003961) | Pin |
| Suitable for number of devices (EF007241) | 19 |
| Rated short-time withstand current lcw (EF007050) | 1.92 kA |
| Number of poles (EF001391) | 3 |
| Colour (EF000007) | Grey |
| Can be cut to size (EF015250) | Yes |
| Insulated (EF000019) | Yes |
| Length (EF001438) | 1000 mm |
| Cross section (EF000649) | 16 mm² |
