View larger
Images are for illustrative purposes only. Please refer to data sheet for details

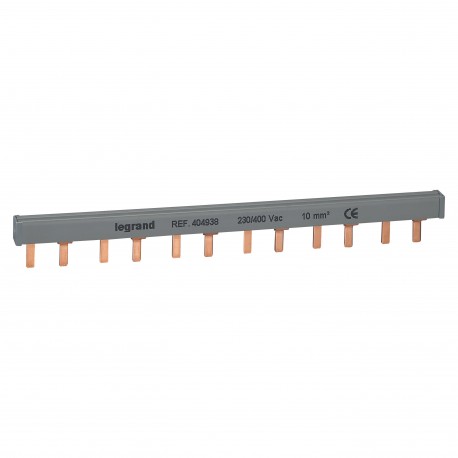

404938 LEGRAND COMB BIPOLAR 12 MOD
404938
404938
LEGRAND
10 Pcs.
COMB BIPOLAR 12 MOD
Supply busbar - prong-type - 2P - max 6 devices connected - 1 row
Universal Bipolar Feeding Comb - 12mod
Automation > Phase busbar
SPLITTERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)10
- Volume (dm3)1.888
- Weight (g)699.00
Product characteristics
Prong-type supply busbarsDouble pole
- Filled with end protection
- Length : 1 row
- Max. number of devices connected : 6
General characteristics
Supply busbars, entry terminals - "standard" distribution| Feature Name | Feature Value |
|---|---|
| Suitable for devices with auxiliary switch (EF007217) | No |
| Suitable for devices with N-conductor (EF007218) | No |
| Module width (EF007504) | 35.5 mm |
| Number of phases (EF000351) | 2 |
| Width in number of modular spacings (EF002950) | 12 |
| Conditioned rated short-circuit current Iq (EF001444) | 0.63 kA |
| Max. rated operation voltage Ue (EF007357) | 400 V |
| Rated permanent current Iu (EF001389) | 63 A |
| Rated surge voltage (EF002993) | 2 kV |
| Type of electric connection (EF003961) | Pin |
| Suitable for number of devices (EF007241) | 6 |
| Rated short-time withstand current lcw (EF007050) | 1.2 kA |
| Number of poles (EF001391) | 2 |
| Colour (EF000007) | Grey |
| Can be cut to size (EF015250) | Yes |
| Insulated (EF000019) | Yes |
| Length (EF001438) | 214 mm |
| Cross section (EF000649) | 10 mm² |
