View larger
Images are for illustrative purposes only. Please refer to data sheet for details

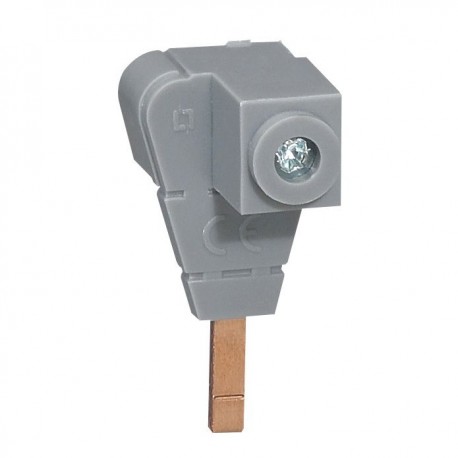

404906 LEGRAND TERMINAL block POWER 35mm2
404906
404906
LEGRAND
20 Pcs.
TERMINAL block POWER 35mm2
Legrand Busbar Entry Terminal
Terminal block for feeding combs - cross-section from 6 to 35mm²
Automation > Rail terminal bar
SPLITTERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Entry terminals Accepts conductors 6- 35 mm² max for single pole busbars only IP 2X
| Number of poles | 1 |
|---|---|
| Nominal current | 125 A |
| Connection type | Screwing |
| Mounting method | Other |
| Number of inputs | 1 |
| Number of outputs | 1 |
| Suitable for solid conductors | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | No |
| Suitable for fine strand conductors without cable end sleeve | No |
| Suitable for extra fine-strand conductors | No |
| Suitable for extra fine-strand conductors without cable end sleeve | No |
| Conductor cross section, input | 6-35 mm² |
| Conductor cross section, output | 10-10 mm² |
| Conductor cross section, input AWG | 2-9 |
| Contact safe | Yes |
|---|---|
| Height | 46 mm |
| Width | 21.5 mm |
| Depth | 26 mm |
| number of rows | 1 |
| degree of impact strength (IK) | IK00 |
| Degree of protection (IP) | IP00 |
| Operating / setting temperature | -5-40 °C |
| Storage temperature | -25-70 °C |
| Nominal voltage | 230-400 V |
| Halogen free | No |
| Type of distribution blocks | Multifunction |
| Terminals capacity | 6-35 mm² |
| Label space/information surface | No |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 46 mm |
| Nominal current (EF000001) | 125 A |
| Connection type (EF000124) | Screwing |
| Mounting method (EF000003) | Other |
| Contact safe (EF004521) | Yes |
| Suitable for extra fine-strand conductors (EF016328) | No |
| Suitable for extra fine-strand conductors without cable end sleeve (EF016329) | No |
| Number of poles (EF001391) | 1 |
| Conductor cross section, output (EF016331) | 10 mm² |
| Conductor cross section, input AWG (EF016332) | 2 |
| Suitable for fine strand conductors without cable end sleeve (EF016327) | No |
| Suitable for stranded conductors (EF007818) | Yes |
| Depth (EF000049) | 26 mm |
| Conductor cross section, input (EF016330) | 6 mm² |
| Suitable for fine strand conductors (EF007804) | No |
| Width (EF000008) | 21.5 mm |
| Suitable for solid conductors (EF007816) | Yes |
| Number of outputs (EF000319) | 1 |
| Number of inputs (EF000318) | 1 |
