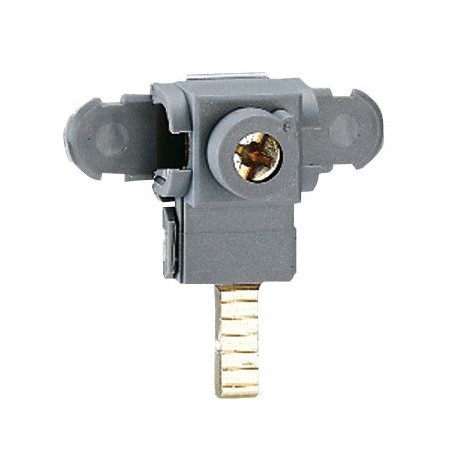

404905 LEGRAND TERMINAL CONNECTION 25 MM2
404905
404905
LEGRAND
20 Pcs.
TERMINAL CONNECTION 25 MM2
Legrand 1 Pole Busbar Entry Terminal IP2X
Terminal block for single-pole power combs - cross-section from 4 to 25mm²
Automation > Rail terminal bar
SPLITTERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Entry terminals Accepts conductors 4 - 25 mm² max for single pole busbars only IP 2X
| Number of poles | 1 |
|---|---|
| Nominal current | 100 A |
| Connection type | Screwing |
| Mounting method | Other |
| Number of inputs | 1 |
| Number of outputs | 1 |
| Suitable for solid conductors | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | No |
| Suitable for fine strand conductors without cable end sleeve | No |
| Suitable for extra fine-strand conductors | No |
| Suitable for extra fine-strand conductors without cable end sleeve | No |
| Conductor cross section, input | 4-25 mm² |
|---|---|
| Conductor cross section, output | 25-25 mm² |
| Conductor cross section, output AWG | 4-4 |
| Contact safe | Yes |
| Height | 37 mm |
| Width | 17.5 mm |
| Depth | 19 mm |
| Operating / setting temperature | -5-40 °C |
| Storage temperature | -25-70 °C |
| Type of distribution blocks | Multifunction |
| Terminals capacity | 4-25 mm² |
| Label space/information surface | No |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 37 mm |
| Nominal current (EF000001) | 100 A |
| Connection type (EF000124) | Screwing |
| Mounting method (EF000003) | Other |
| Contact safe (EF004521) | Yes |
| Suitable for extra fine-strand conductors (EF016328) | No |
| Suitable for extra fine-strand conductors without cable end sleeve (EF016329) | No |
| Number of poles (EF001391) | 1 |
| Conductor cross section, output AWG (EF016333) | 4 |
| Conductor cross section, output (EF016331) | 25 mm² |
| Suitable for fine strand conductors without cable end sleeve (EF016327) | No |
| Suitable for stranded conductors (EF007818) | Yes |
| Depth (EF000049) | 19 mm |
| Conductor cross section, input (EF016330) | 4 mm² |
| Suitable for fine strand conductors (EF007804) | No |
| Width (EF000008) | 17.5 mm |
| Suitable for solid conductors (EF007816) | Yes |
| Number of outputs (EF000319) | 1 |
| Number of inputs (EF000318) | 1 |
