View larger
Images are for illustrative purposes only. Please refer to data sheet for details

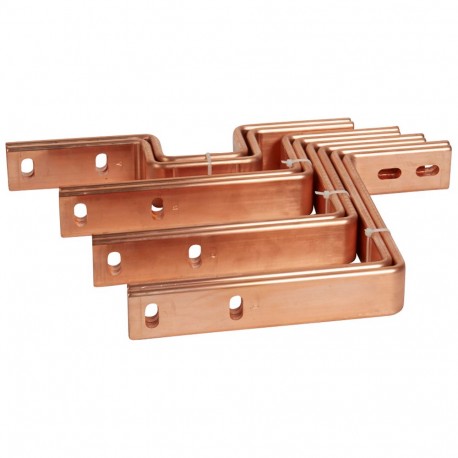

404693 LEGRAND ALIM CHASSIS COLUMN TO THE 2000A
404693
404693
LEGRAND
1 Pcs.
ALIM CHASSIS COLUMN TO THE 2000A
Connection set VX3 IS for busbar of aluminium 3200 - ln 2000
VX³ IS connection assembly for 3200A aluminum busbar - ln 2000A
Automation > Busbar
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Equipment for distribution IS Set for connection on busbar horizontal - Bars union prepared for the power of the chassis of the column VX3 IS by busbars main horizontal up - or down- Include a box of compartmentalization to the busbar horizontal - For busbar of aluminium 3200 - In 2000 (wheelbase 75 mm)General characteristics
Spread IS a vertical VX3 IS up to 2000 - in closet XL3 4000| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Flat |
| Surface protection (EF000139) | Untreated |
| Rated current In (EF008250) | 2000 A |
| Flexible (EF000083) | No |
