View larger
Images are for illustrative purposes only. Please refer to data sheet for details

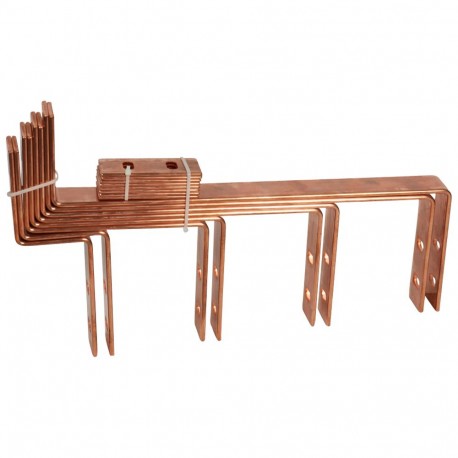

404690 LEGRAND ALIM CHASSIS COLUMN CU 1250A
404690
404690
LEGRAND
1 Pcs.
ALIM CHASSIS COLUMN CU 1250A
Connection set VX3 IS for busbar Cu horizontal 4000 A - ln 1250 To
VX³ IS connection set for horizontal Cu busbar 4000A - ln 1250A
Automation > Busbar
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Equipment for distribution IS Set for connection on busbar horizontal - Bars union prepared for the power of the chassis of the column VX3 IS by busbars main horizontal up - or down- Include a box of compartmentalization to the busbar horizontal - For busbar copper 4000 A - In 1250 A (wheelbase 125 mm)General characteristics
Spread IS a vertical VX3 IS up to 2000 - in closet XL3 4000| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Flat |
| Surface protection (EF000139) | Untreated |
| Rated current In (EF008250) | 1250 A |
| Flexible (EF000083) | No |
