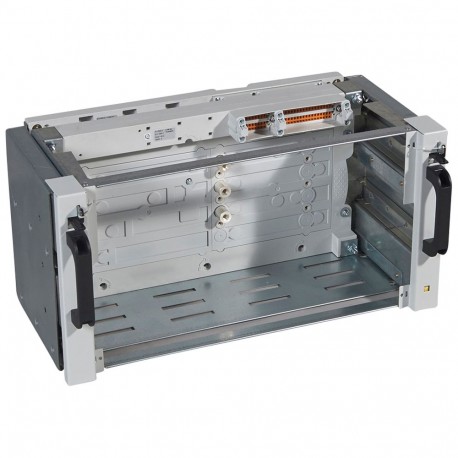

LEGRAND 404646 404646 LEGRAND BASE DPX 630 WITHOUT DIF 3P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

404646 LEGRAND BASE DPX 630 WITHOUT DIF 3P

404646

404646

LEGRAND

1 Pcs.

BASE DPX 630 WITHOUT DIF 3P Base VX3 IS premium - 3P - DPX 630 without differential VX³ IS Premium Base - 3P - DPX³ 630 without differential

Automation > Chassis part power circuit breaker
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

404646 LEGRAND BASE DPX 630 WITHOUT DIF 3P is a robust mounting base designed to anchor three-pole molded case circuit breakers securely within industrial electrical enclosures. It provides a standardized structural platform that simplifies internal busbar integration and ensures secure device retention during operation. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as busbar adapter (EF006965): No
  • Version as built-in device (EF006954): No
  • Type of electrical connection of main circuit (EF006819): Spring clamp connection
  • Rated current In (EF008250): 630 A
  • Number of poles (EF001391): 3

More info

▲

Product features

Bases VX3 IS for the appliance - Is set on the studs functional - Feeding tweezers - Connection and disconnection automatic in the chassis of the column VX3 IS Bases VX3 IS premium - Free, upstream, auto - downstream Connection automatic - Basis for the module of automatic connection of the auxiliary - For DPX3 630 without differential - 3P:

General characteristics

Spread IS a vertical VX3 IS up to 2000 - in closet XL3 4000
