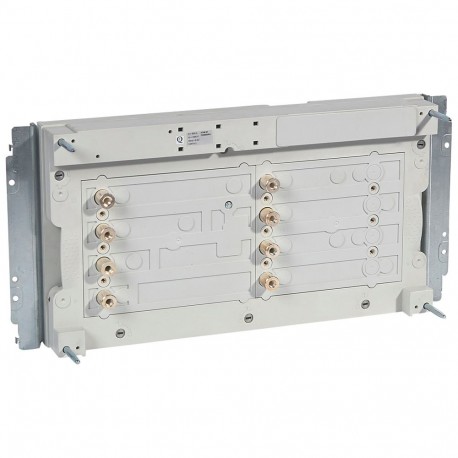

LEGRAND 404627 404627 LEGRAND BASE DPX 630 WITHOUT DIF 4P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

404627 LEGRAND BASE DPX 630 WITHOUT DIF 4P

404627

404627

LEGRAND

1 Pcs.

BASE DPX 630 WITHOUT DIF 4P Base VX3 IS plus - 4P - DPX 630 without differential

Automation > Chassis part power circuit breaker
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This 404627 LEGRAND BASE DPX 630 WITHOUT DIF 4P is a specialized circuit breaker base designed to securely mount and interface molded case breakers within power distribution architectures. Equipment bases of this type provide structural support, electrical termination points, and safe mechanical isolation for high-capacity switching devices in industrial switchboards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as busbar adapter (EF006965): No
  • Version as built-in device (EF006954): No
  • Type of electrical connection of main circuit (EF006819): Spring clamp connection
  • Rated current In (EF008250): 630 A
  • Number of poles (EF001391): 4

More info

▲

Product features

Bases VX3 IS for the appliance - Is set on the studs functional - Feeding tweezers - Connection and disconnection automatic in the chassis of the column VX3 IS Bases VX3 IS plus - Connection upstream, auto - downstream Connection automatic - For DPX3 630 without differential - 4P:

General characteristics

Spread IS a vertical VX3 IS up to 2000 - in closet XL3 4000

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
