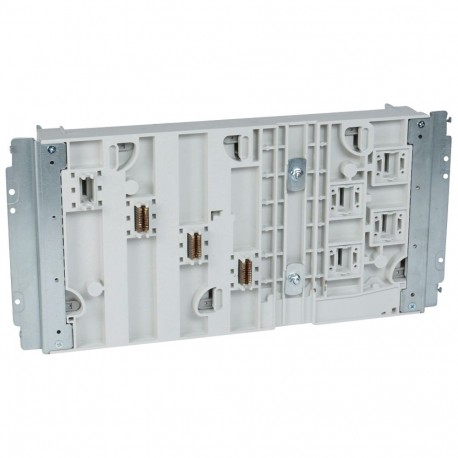

LEGRAND 404616 404616 LEGRAND BASE DPX 630 3P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

404616 LEGRAND BASE DPX 630 3P

404616

404616

LEGRAND

1 Pcs.

BASE DPX 630 3P Base VX3 IS basic - 3P - DPX 630 with or without differential

Automation > Chassis part power circuit breaker
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand base acts as a reliable mounting foundation engineered to accommodate high-capacity molded case circuit breakers and auxiliary protection devices inside electrical panels. Such bases provide secure physical anchorage and organized terminal layouts to facilitate efficient switchboard assembly.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as busbar adapter (EF006965): No
  • Version as built-in device (EF006954): No
  • Type of electrical connection of main circuit (EF006819): Spring clamp connection
  • Rated current In (EF008250): 630 A
  • Number of poles (EF001391): 3

More info

▲

Product features

Bases VX3 IS for the appliance - Is set on the studs functional - Feeding tweezers - Connection and disconnection automatic in the chassis of the column VX3 IS Bases VX3 IS basic - Connection upstream, auto - downstream Connection for the previous take - For DPX3 630 with or without differential - 3P:

General characteristics

Spread IS a vertical VX3 IS up to 2000 - in closet XL3 4000

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
