View larger
Images are for illustrative purposes only. Please refer to data sheet for details

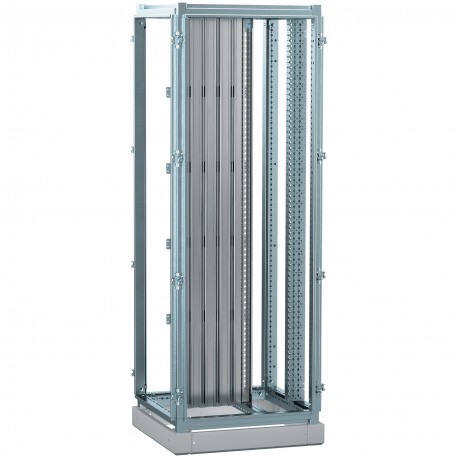

404602 LEGRAND CHASSIS COLUMN XL34000 P975
404602
404602
LEGRAND
1 Pcs.
CHASSIS COLUMN XL34000 P975
Chassis VX3 IS - for locker fund 975 mm - with bracket caps cubrebornas
VX³ IS chassis for 975mm deep cabinet - with terminal cover cover support
Automation > Chassis part power circuit breaker
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Chassis column VX3 IS - Busbar aluminium copper tinned - special Profile for automatic connection through clips - Supports the bases VX3 IS for devices and dispatchers of row HX3 IS - Allows the sharing VX3 IS basic, plus and premium in function of the bases and the delivery drivers are installed - Includes compartmentalization - Is mounted in a cabinet XL3 4000 Chassis VX3 IS Chassis formed by a stud and brackets, insulated aluminum bars - Reversible for installation of the busbars main horizontal top or bottom of the wardrobe - closet XL3 4000 height 2200 mm - For mounting in wardrobe with cell lateral internal, use the stud intermediate ref. 0 208 51 with the rails ref. 0 205 22/23 - Bottom cabinet: 975 mmGeneral characteristics
Spread IS a vertical VX3 IS up to 2000 - in closet XL3 4000| Feature Name | Feature Value |
|---|---|
| Version as busbar adapter (EF006965) | No |
| Version as built-in device (EF006954) | No |
