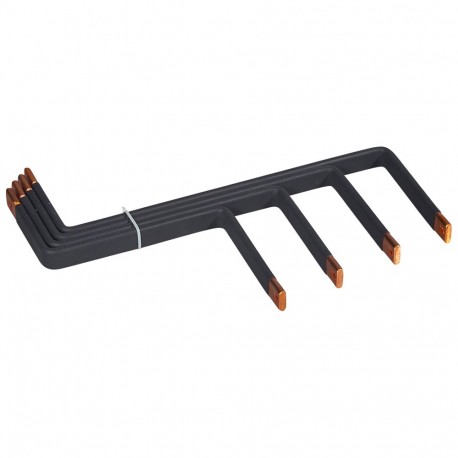

LEGRAND 404562 404562 LEGRAND KIT CONNECTION DPX 630 HORIZ View larger
Images are for illustrative purposes only. Please refer to data sheet for details

404562 LEGRAND KIT CONNECTION DPX 630 HORIZ

404562

404562

LEGRAND

1 Pcs.

KIT CONNECTION DPX 630 HORIZ Connection Kit for DPX3630 horizontally from busbar side after the jamb Connection kit for DPX³ 630 horizontal from side busbar to upright

Automation > Busbar
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A connection kit provides the necessary mechanical interface elements to bridge heavy-duty molded case circuit breakers with power distribution buses. Technicians rely on hardware assemblies like the Legrand 404562 to ensure proper phase alignment within heavy industrial switchboards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Flat
  • Surface protection (EF000139): Untreated
  • Rated current In (EF008250): 630 A
  • Flexible (EF000083): No

More info

▲

Product features

Connection set prefabricadoVX3 - copper Bars rigid, prepared for the connection of devices on the busbar of aluminium in C VX3 aligned, 630 to 1600 A, wheelbase 75 mm - supplied with screws - Connections for automatic fixed without accessories - mounting mounting plates fixed To busbar side, in cell lateral internal fund 725 and 975 mm - mounted in a cabinet XL3 4000 - For DPX3 630 horizontal

General characteristics

Distribution optimized VX3/HX3 - in closet XL3 4000
