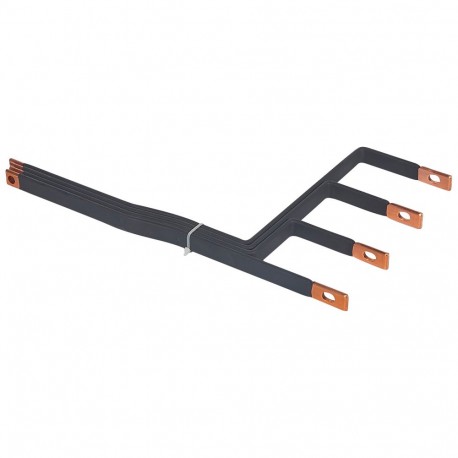

LEGRAND 404551 404551 LEGRAND KIT CONNECTION DPX3 250 HORIZ View larger
Images are for illustrative purposes only. Please refer to data sheet for details

404551 LEGRAND KIT CONNECTION DPX3 250 HORIZ

404551

404551

LEGRAND

1 Pcs.

KIT CONNECTION DPX3 250 HORIZ Connection Kit for DPX3160/250 horizontally from busbar on the cell side Connection kit for DPX³ 160/250 horizontal from busbar in side cell

Automation > Busbar
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 404551 LEGRAND KIT CONNECTION DPX3 250 HORIZ is a specialized connection kit designed to interface molded case circuit breakers with internal busbar systems horizontally. Switchgear assemblies utilize such transition hardware to ensure reliable mechanical mounting and secure electrical conductivity throughout power distribution panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Flat
  • Surface protection (EF000139): Untreated
  • Rated current In (EF008250): 250 A
  • Flexible (EF000083): No

More info

▲

Product features

Connection set prefabricadoVX3 - copper Bars rigid, prepared for the connection of devices on the busbar of aluminium in C VX3 aligned, 630 to 1600 A, wheelbase 75 mm - supplied with screws - Connections for automatic fixed without accessories - mounting mounting plates fixed To busbar side, in cell lateral internal fund 475 mm - mounted in a cabinet XL3 4000 - For DPX3 250 DPX3 160, horizontal

General characteristics

Distribution optimized VX3/HX3 - in closet XL3 4000
