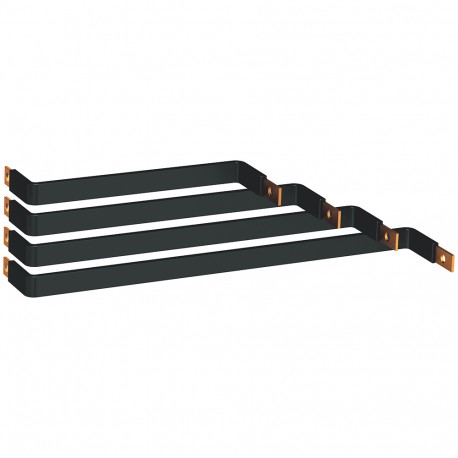

LEGRAND 404542 404542 LEGRAND KIT CONNECTION DPX 630 HORIZ View larger
Images are for illustrative purposes only. Please refer to data sheet for details

404542 LEGRAND KIT CONNECTION DPX 630 HORIZ

404542

404542

LEGRAND

1 Pcs.

KIT CONNECTION DPX 630 HORIZ Connection Kit for DPX3630 horizontally from busbar side after the jamb Connection kit for DPX³ 630 horizontal from side busbar to upright

Automation > Busbar
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 404542 LEGRAND KIT CONNECTION DPX 630 HORIZ is a connection kit used to securely link circuit breakers and power distribution blocks within heavy-duty electrical switchgear. This hardware ensures reliable electrical contact and mechanical stability across high-capacity industrial power circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Flat
  • Surface protection (EF000139): Untreated
  • Rated current In (EF008250): 630 A
  • Flexible (EF000083): No

More info

▲

Product features

Set connection pre-VX3 - copper Bars rigid, prepared for the connection of devices on the busbar of aluminium in C VX3 aligned, 630 to 1600 A, wheelbase 75 mm - supplied with screws - Connections for automatic fixed - mounting on mounting plates fixed To busbar side after the jamb Is mounted in a cabinet XL3 4000, depth 725 or 975 mm - For DPX3 630 horizontal

General characteristics

Distribution optimized VX3/HX3 - in closet XL3 4000
