View larger
Images are for illustrative purposes only. Please refer to data sheet for details

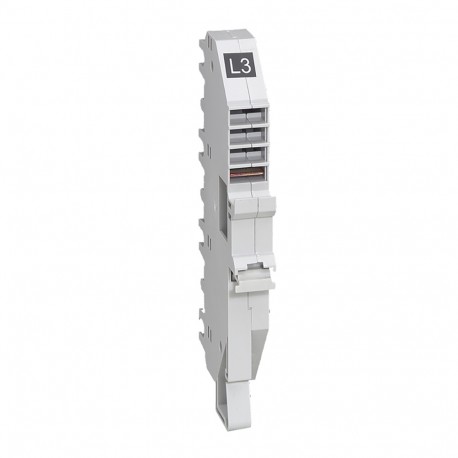

404512 LEGRAND BASE DX3 single-POLE L3
404512
404512
LEGRAND
1 Pcs.
BASE DX3 single-POLE L3
Base plug-in dealer row HX3 250/400 - for DX3 unipolar 1 mód/polo L3
HX³ 250/400A row splitter plug-in base for DX³ unipolar 1mod/pole L3
Automation > Chassis part power circuit breaker
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Bases supports HX3 for modular apparatuses DX3 - Allow automatic connection of devices DX3 in the dealers row 250/400 TO HX3 - The bases are fed through the dealer Base plug-in for DX3 1 module/pole - For DX3 single - Phase L3General characteristics
Distribution IS horizontal HX3 IS - up to 400 A in cabinet XL3 4000| Feature Name | Feature Value |
|---|---|
| Version as busbar adapter (EF006965) | No |
| Version as built-in device (EF006954) | No |
| Type of electrical connection of main circuit (EF006819) | Spring clamp connection |
| Rated current In (EF008250) | 63 A |
| Number of poles (EF001391) | 1 |
