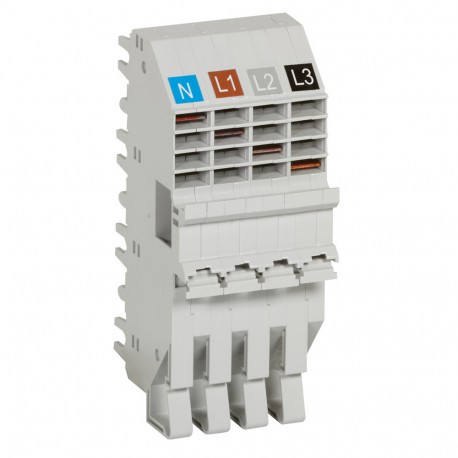

LEGRAND 404508 404508 LEGRAND BASE DX3 TETRAPOLAR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

404508 LEGRAND BASE DX3 TETRAPOLAR

404508

404508

LEGRAND

1 Pcs.

BASE DX3 TETRAPOLAR Base plug-in dealer row HX3 250/400 - for DX3 tetrapolar 1 module/pole HX³ 250/400A row splitter plug-in base for DX³ quad-pole 1mod/pole

Automation > Chassis part power circuit breaker
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand base DX3 tetrapolar serves as an organized terminal mounting foundation designed to securely anchor modular protective devices within multi-phase electrical distribution boards. This component facilitates clean wiring layouts and structural support for four-pole circuit configurations in commercial and industrial setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as busbar adapter (EF006965): No
  • Version as built-in device (EF006954): No
  • Type of electrical connection of main circuit (EF006819): Spring clamp connection
  • Rated current In (EF008250): 63 A
  • Number of poles (EF001391): 4

More info

▲

Product features

Bases supports HX3 for modular apparatuses DX3 - Allow automatic connection of computers DX3 in the dealers row 250/400 TO HX3 - The bases are fed through the dealer Base plug-in for DX3 1 module/pole - For DX3 tetrapolar

General characteristics

Distribution IS horizontal HX3 IS - up to 400 A in cabinet XL3 4000
