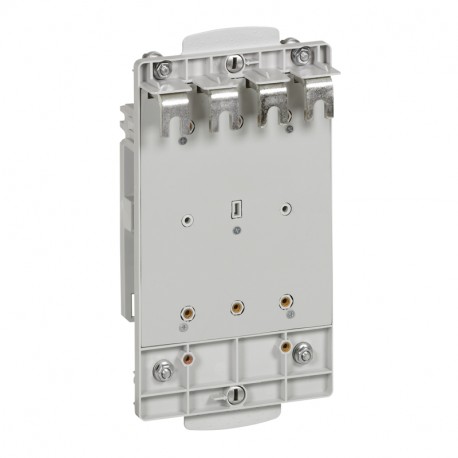

LEGRAND 404503 404503 LEGRAND BASE DPX3 250 4P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

404503 LEGRAND BASE DPX3 250 4P

404503

404503

LEGRAND

1 Pcs.

BASE DPX3 250 4P Base dealer row HX3 250/400 for DPX3 250 - 4P with or without differential HX³ 250/400A row splitter base for DPX³ 250 - 4P with or without differential

Automation > Chassis part power circuit breaker
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand part number 404503 is a base DPX3 250 4P designed to provide a secure mounting and connection foundation for circuit breaker installations within industrial distribution panels. Bases of this type organize internal panel layouts, ensure stable physical support, and maintain reliable electrical connectivity for multi-pole switching devices.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as busbar adapter: No
  • Version as built-in device: No
  • Type of electrical connection of main circuit: Spring clamp connection
  • Rated current In: 250 A
  • Number of poles: 4

More info

▲

Product features

Bases supports HX3 for automatic power DPX3 - Enable automatic connection of the switches DPX3 with or without a differential in the dealers row 250/400 TO HX3 - Include cubrebornas For DPX3 250 - 4P with or without differential

General characteristics

Distribution IS horizontal HX3 IS - up to 400 A in cabinet XL3 4000
