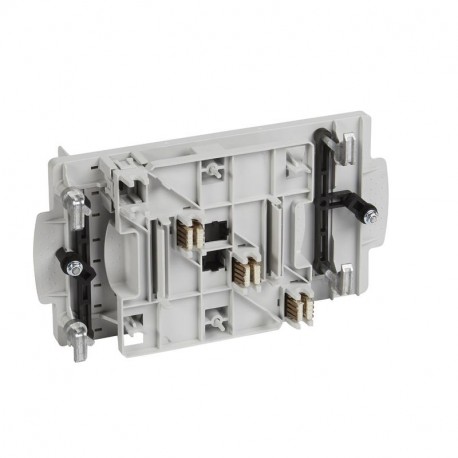

LEGRAND 404502 404502 LEGRAND BASE DPX3 250 3P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

404502 LEGRAND BASE DPX3 250 3P

404502

404502

LEGRAND

1 Pcs.

BASE DPX3 250 3P Base dealer row HX3 250/400 for DPX3 250 - 3P with or without differential HX³ 250/400A row distribution base for DPX³ 250 - 3P with or without differential

Automation > Chassis part power circuit breaker
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Constructed as a Legrand 404502 LEGRAND BASE DPX3 250 3P, this base unit delivers a reliable mechanical foundation and terminal connection point for modular molded case circuit breakers. Panel builders rely on dedicated breaker bases to maintain structural integrity and secure electrical contact within power distribution panels.

Exact pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as busbar adapter (EF006965): No
  • Version as built-in device (EF006954): No
  • Type of electrical connection of main circuit (EF006819): Spring clamp connection
  • Rated current In (EF008250): 250 A
  • Number of poles (EF001391): 3

More info

▲

Product features

Bases supports HX3 for automatic power DPX3 - Enable automatic connection of the switches DPX3 with or without a differential in the dealers row 250/400 TO HX3 - Include cubrebornas For DPX3 250 - 3P with or without differential

General characteristics

Distribution IS horizontal HX3 IS - up to 400 A in cabinet XL3 4000

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
