View larger
Images are for illustrative purposes only. Please refer to data sheet for details

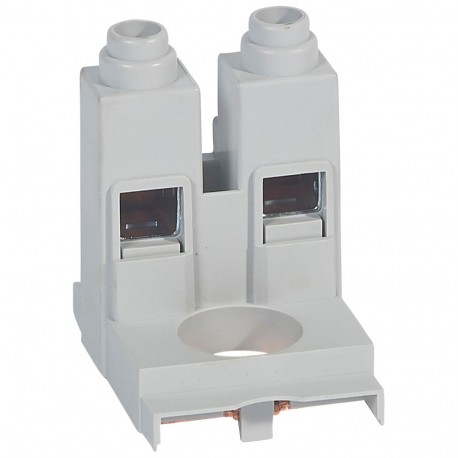

404490 LEGRAND TERMINAL CONNECTION 250A
404490
404490
LEGRAND
1 Pcs.
TERMINAL CONNECTION 250A
Terminal block wiring supplementary 250 TO VX3 - for aluminium bars 250 and 400 A
Supplementary wiring terminal block 250A VX³ for 250 and 400A aluminium bars
Automation > Busbar terminal
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Accessories for aluminium bars 250 and 400 A - Terminal block wiring, extra 250-TO-IP 2XGeneral characteristics
Vertical distribution VX3 optimized - up to 400 A in cabinet XL3 400| Feature Name | Feature Value |
|---|---|
| Suitable for (EF000073) | Other |
| Busbar width (EF007219) | 30 mm |
| Max. rated operation current Ie (EF007356) | 250 A |
| Suitable for round conductor connection (EF007258) | No |
| Suitable for strip conductor connection (EF007242) | Yes |
| Suitable for sector conductor connection (EF007260) | Yes |
| Max. conductor cross section (EF004969) | 50 mm² |
