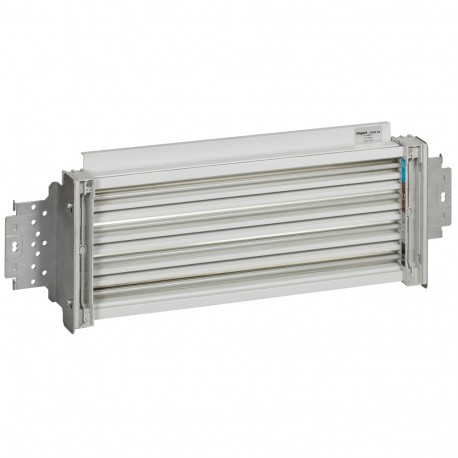

LEGRAND 404484 404484 LEGRAND REPART HORIZ 400A WITHOUT CONEX View larger
Images are for illustrative purposes only. Please refer to data sheet for details

404484 LEGRAND REPART HORIZ 400A WITHOUT CONEX

404484

404484

LEGRAND

1 Pcs.

REPART HORIZ 400A WITHOUT CONEX Dealer row 400 HX3 - 24 modules - without connection

Automation > Busbar trunk unit
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand REPART HORIZ 400A WITHOUT CONEX horizontal distribution block (part number 404484) acts as an organized junction point for distributing electrical currents across industrial switchboards. Multi-pole distribution blocks simplify complex panel wiring architectures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 50 mm
  • Model (EF000010): Single
  • Degree of protection (IP) (EF005474): IP20
  • Rated voltage AC 50 Hz (EF007065): 400 V
  • Number of tap-off units (EF007583): 24
  • Rated current AC 50 Hz (EF007684): 400 A
  • Flexible (EF000083): Yes
  • Number of poles (EF001391): 4
  • Number of conductors (without earthing) (EF001148): 4
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035
  • Length (EF001438): 432 mm
  • Width (EF000008): 200 mm

More info

▲

Product features

Dispatchers row 400 HX3 - mounted boxes and cabinets XL3 800 and cabinets XL3 4000 - Support the bases of supports for DPX3 and for modular devices DX3 - Capacity of 24 modules - Without a direct connection - you Need the power supply module 404482

General characteristics

Horizontal distribution HX3 optimized up to 400 boxes, cabinets XL3 400, 800, 4000
