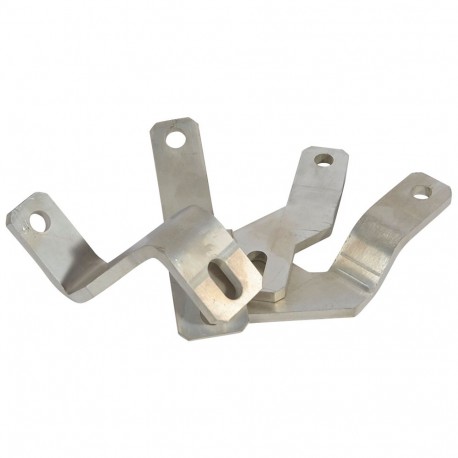

LEGRAND 404472 404472 LEGRAND KIT CONNECTION DPX 630 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

404472 LEGRAND KIT CONNECTION DPX 630

404472

404472

LEGRAND

1 Pcs.

KIT CONNECTION DPX 630 Kit for connection of DPX3 630 in cell side insulation cell side Kit for connection of DPX³ 630 in side cell to side cell busbar

Automation > Busbar
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This 404472 LEGRAND KIT CONNECTION DPX 630 is a connection kit used to interface molded case circuit breakers with primary busbars in commercial and industrial switchboards. These accessories ensure correct mechanical alignment and reliable current transfer for heavy electrical protection devices.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Flat
  • Surface protection (EF000139): Untreated
  • Rated current In (EF008250): 630 A
  • Flexible (EF000083): No

More info

▲

Product features

Set connection pre-fabricated - copper Bars rigid, prepared for the connection of devices on the busbar of aluminium in C 800 TO VX3 - supplied with hardware For connection of an appliance in cell side to a busbar in the cell side - mounts on cabinet XL3 800 and XL3 4000 - For DPX3 630 with or without differential

General characteristics

Vertical distribution VX3 optimized - up to 800 in closet XL3 800, 4000
